SKU: NJG2308VH-SKF

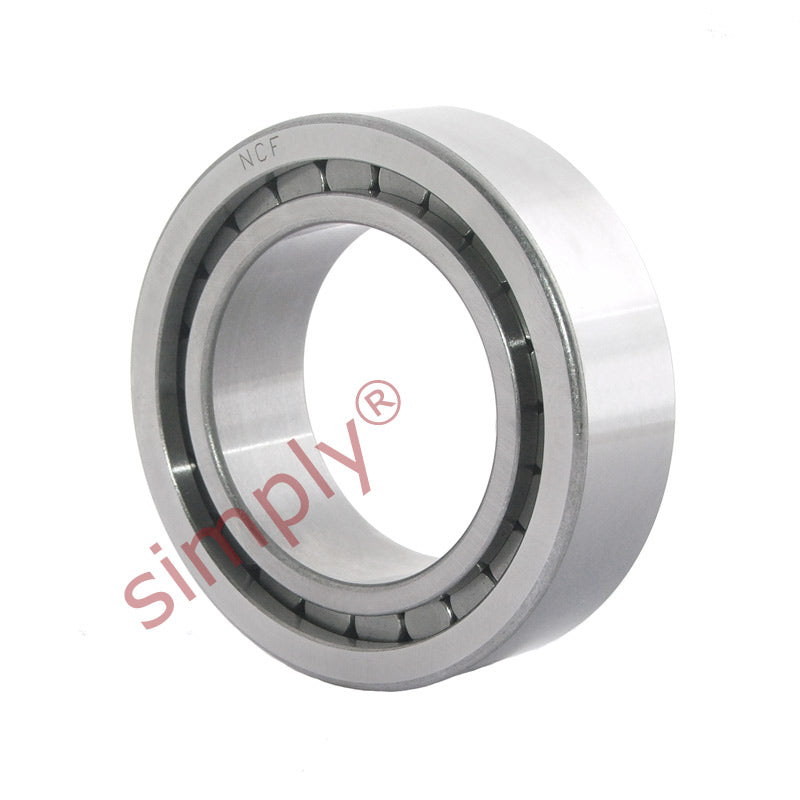

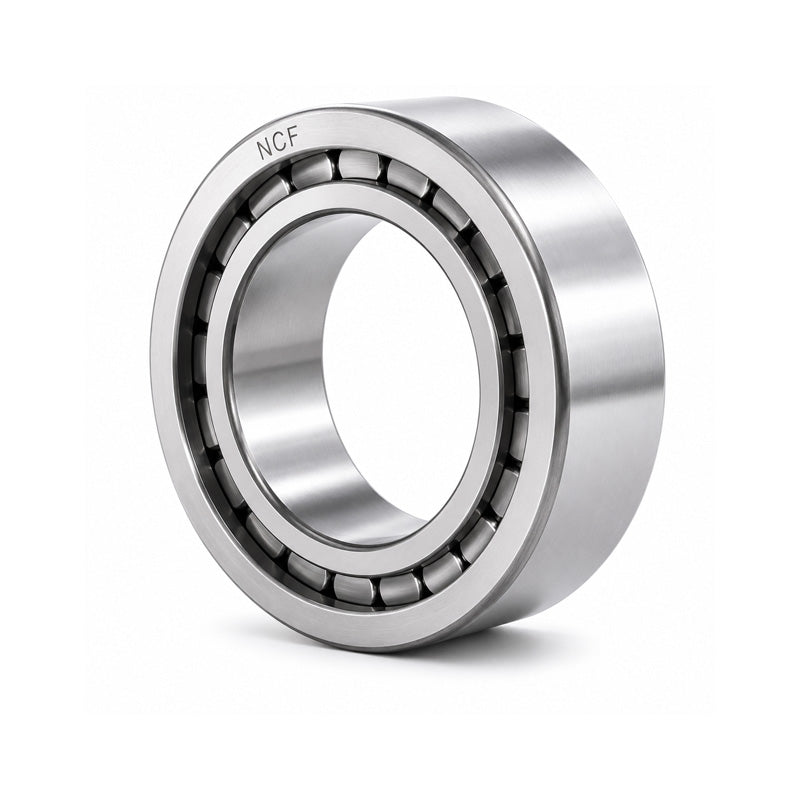

SKF NJG2308VH Single Row Cylindrical Roller Bearing 40x90x33mm
SKF NJG2308VH Single Row Cylindrical Roller Bearing 40x90x33mm
Regular price
€333,95
ex VAT
Regular price
Sale price
€333,95
ex VAT
In stock
Price Break
10+
€254,34
19+
€240,05
29+
€237,19
39+
€234,33
49+
€231,48
74+
€228,62
99+
€214,33
199+
€211,47
249+
€208,61
499+
€205,76
999+
€200,04
Description
Description
|
SKF NJG Series Single Row Full Complement Cylindrical Roller Bearings: Have integral locating flanges on the outer race and one on the inner raceway serving to permit axial location in one direction only. They are designed for slow moving heavily loaded application. Being of full complement design they have the maximum number of rollers and can tolerate heavy radial loads and tolerate small axial displacements from shaft expansion within the bearing. Benefits: Tolerate axial load in one direction, none separable construction |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 90mm
- Width:
- 33mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 40mm |
|---|---|
| D | 90mm |
| B | 33mm |
| Dynamic load C | 145 kN |
| Static load Co | 156 kN |
| Fatigue load limit Pu | 20 kN |
| Reference speed | 3000 rpm |
| Limiting speed | 3600 rpm |
| Weight | 1 kg |
| d1 | 57.6mm |
| D1 | 75.2mm |
| E/F | 51.15mm |
| r1r2 min | 1.5mm |
| S | 2.4mm |
| da min | 49mm |
| das | 54.4mm |
| db max | 49mm |
| Da max | 81mm |
| ra max | 1.5mm |
