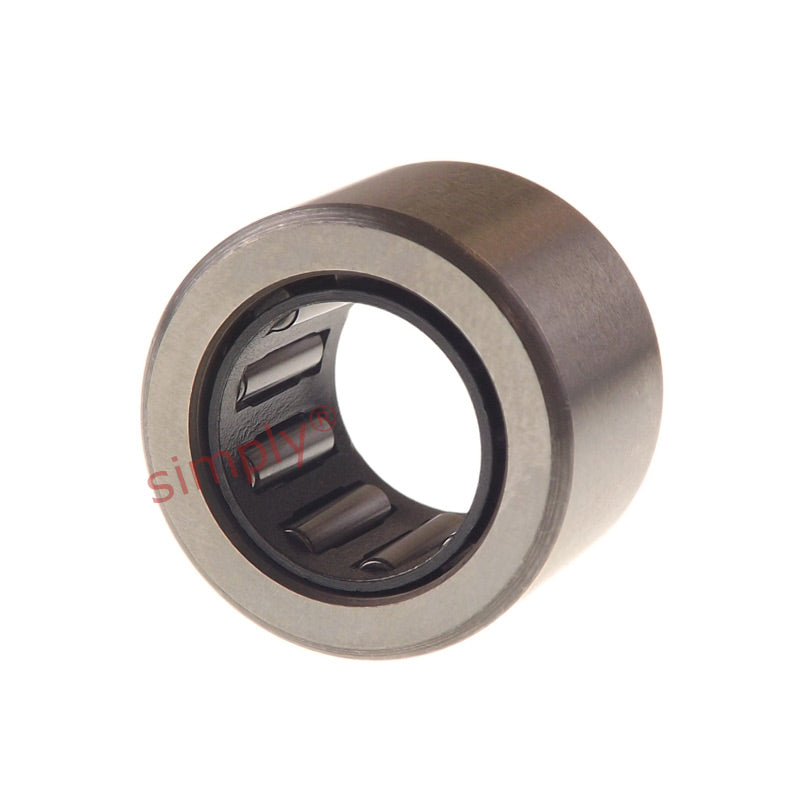

NK10/12TN Budget Needle Roller Bearing with Flanges no Shaft Sleeve 10x17x12mm
NK10/12TN Budget Needle Roller Bearing with Flanges no Shaft Sleeve 10x17x12mm
Regular price
€8,95
ex VAT
Regular price
Sale price
€8,95
ex VAT
In stock
Price Break
10+
€6,24
19+
€5,89
29+
€5,82
39+
€5,75
49+
€5,68
74+
€5,61
99+
€5,26
199+
€5,19
249+
€5,12
499+
€5,05
999+
€4,91
Description
Description
|
Budget Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 17mm
- Width:
- 12mm
Technical
Technical
| Fw | 10mm |
|---|---|
| D | 17mm |
| C | 12mm |
| Dynamic load C | 4400 N |
| Static load Co | 5400 N |
| Fatigue load limit Pu | 620 N |
| Speed in grease | 22000 rpm |
| Speed in oil | 34000 rpm |
| r1r2 | 0.3mm |
| Da max | 15mm |
| ra max | 0.3mm |
| Seal | G/SD10x17x3 |
| Weight | 10 g |
