SKU: NK10/12TN-MB

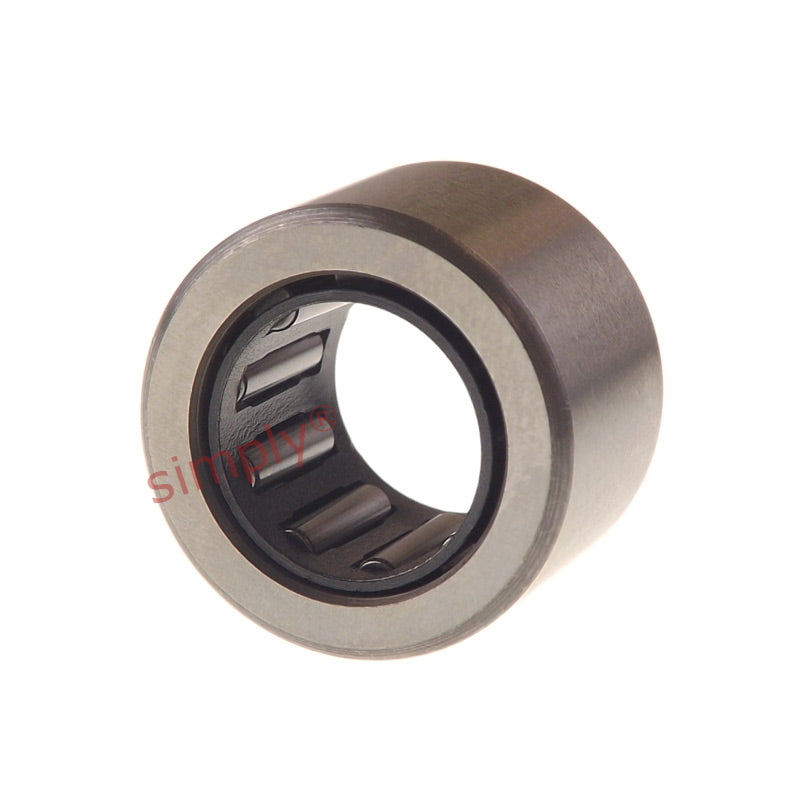

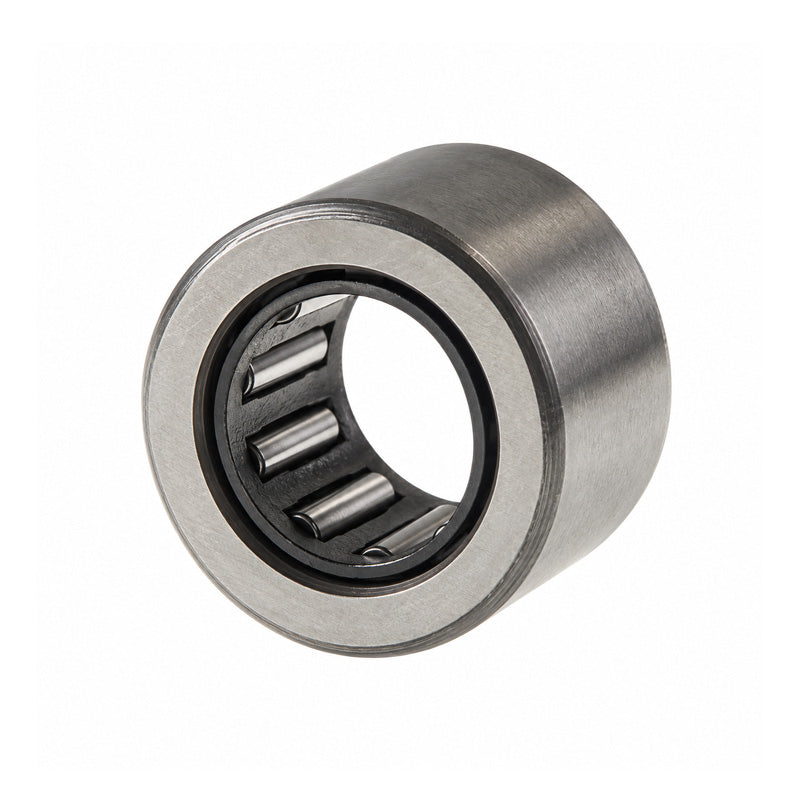

Major Brand NK10/12TN Needle Roller Bearing With Flanges without Shaft Sleeve 10x17x12mm
Major Brand NK10/12TN Needle Roller Bearing With Flanges without Shaft Sleeve 10x17x12mm
Regular price
€10,39
ex VAT
Regular price
Sale price
€10,39
ex VAT
In stock
Price Break
10+
€9,25
19+
€8,73
29+
€8,62
39+
€8,52
49+
€8,42
74+
€8,31
99+
€7,79
199+
€7,69
249+
€7,58
499+
€7,48
999+
€7,27
Couldn't load pickup availability
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 17mm
- Width:
- 12mm
Technical
Technical
| Fw | 10mm |
|---|---|
| D | 17mm |
| C | 12mm |
| Dynamic load | 4400 N |
| Static load | 5400 N |
| Fatigue load limit Pu | 620 N |
| Speed in grease | 22000 rpm |
| Speed in oil | 34000 rpm |
| r1r2 | 0.3mm |
| Da max | 15mm |
| ra max | 0.3mm |
| Seal | G/SD10x17x3 |
| Weight | 10 g |
