SKU: NK10/16TN-MB

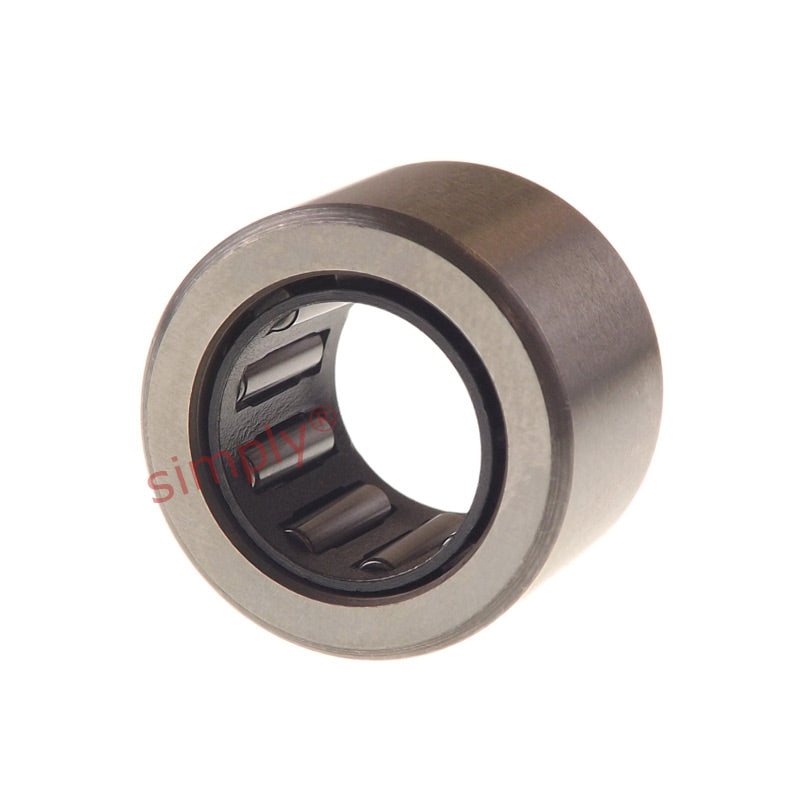

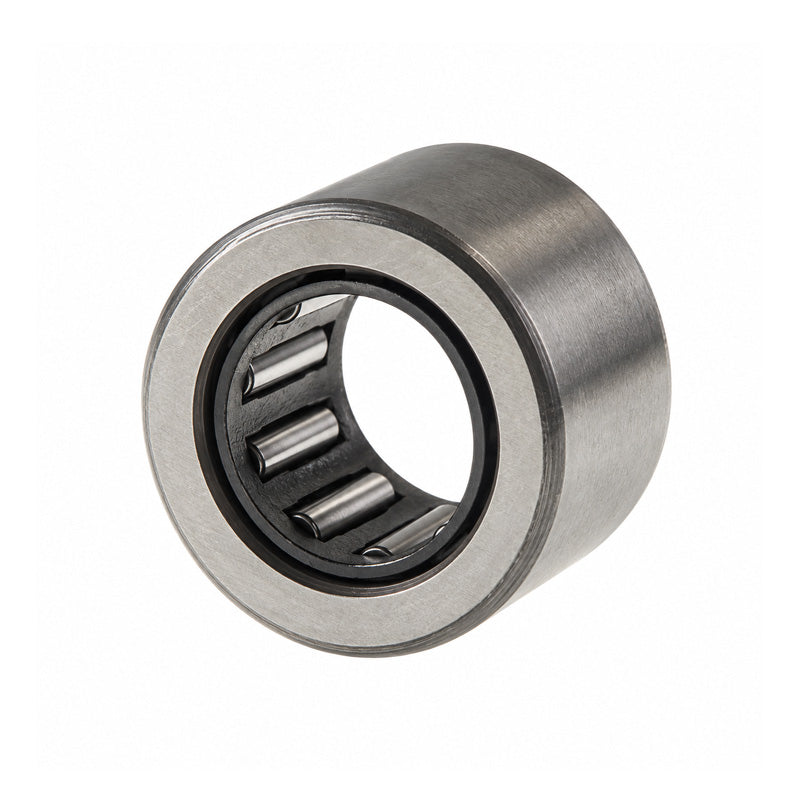

Major Brand NK10/16TN Needle Roller Bearing With Flanges without Shaft Sleeve 10x17x16mm
Major Brand NK10/16TN Needle Roller Bearing With Flanges without Shaft Sleeve 10x17x16mm
Regular price
€10,95
ex VAT
Regular price
Sale price
€10,95
ex VAT
In stock
Price Break
10+
€8,21
19+
€7,75
29+
€7,66
39+
€7,57
49+
€7,47
74+
€7,38
99+
€6,92
199+
€6,83
249+
€6,74
499+
€6,64
999+
€6,46
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 17mm
- Width:
- 16mm
Technical
Technical
| Fw | 10mm |
|---|---|
| D | 17mm |
| C | 16mm |
| Dynamic load | 5940 N |
| Static load | 8000 N |
| Fatigue load limit Pu | 900 N |
| Speed in grease | 22000 rpm |
| Speed in oil | 34000 rpm |
| r1r2 | 0.3mm |
| Da max | 15mm |
| ra max | 0.3mm |
| Seal | G/SD10x17x3 |
| Weight | 13 g |
