SKU: NK14/16-EU

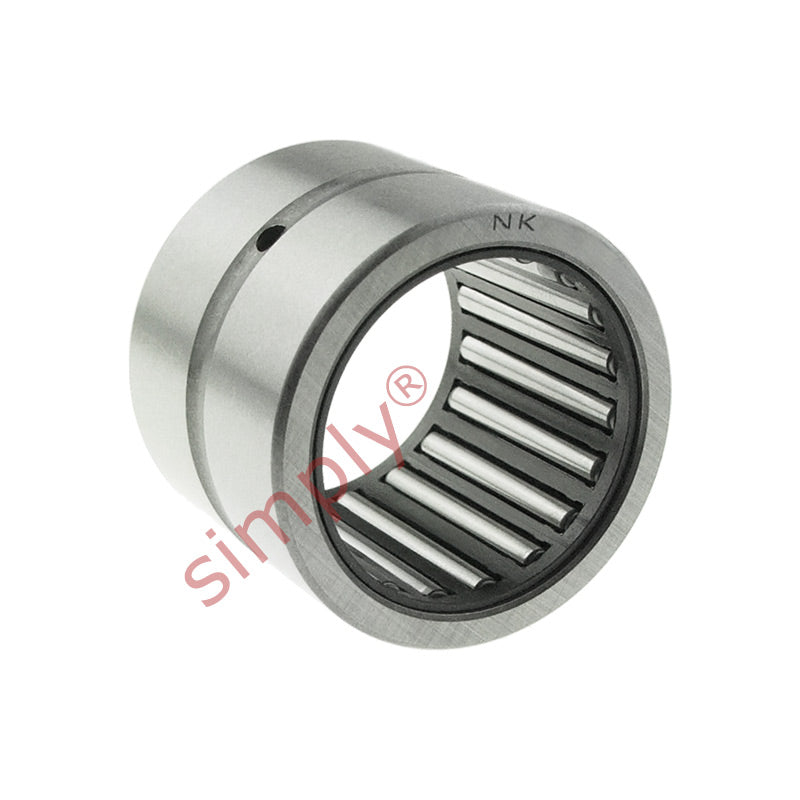

NK14/16 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 14x22x16mm
NK14/16 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 14x22x16mm
Regular price
€9,95
ex VAT
Regular price
Sale price
€9,95
ex VAT
In stock
Price Break
10+
€6,84
19+
€6,46
29+
€6,38
39+
€6,30
49+
€6,23
74+
€6,15
99+
€5,77
199+
€5,69
249+
€5,61
499+
€5,54
999+
€5,38
Description
Description
|
Budget Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 14mm
- Outside Diameter:
- 22mm
- Width:
- 16mm
Technical
Technical
| Fw | 14mm |
|---|---|
| D | 22mm |
| C | 16mm |
| Dynamic load C | 10200 N |
| Static load Co | 12500 N |
| Fatigue load limit Pu | 1530 N |
| Speed in grease | 17000 rpm |
| r1r2 | 0.3mm |
| Da max | 20mm |
| ra max | 0.3mm |
| Seal | G/SD14x22x3 |
| Weight | 21 g |
