SKU: NK26/16R+1R22X26X16-NTN

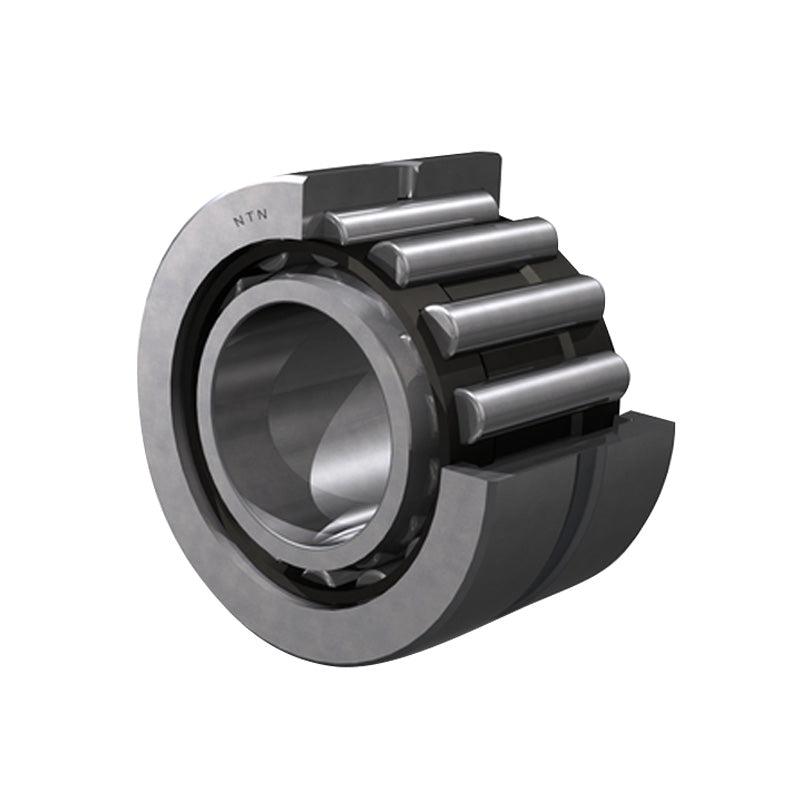

NTN NK26/16R-1R22X26X16 Machined Needle Roller Bearing with Shaft Sleeve 22x34x16mm - Allow 2-3 Days

NTN NK26/16R-1R22X26X16 Machined Needle Roller Bearing with Shaft Sleeve 22x34x16mm - Allow 2-3 Days
Regular price €18,95 ex VAT
Regular price Sale price €18,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €15,33
4+ €14,71
9+ €14,40
19+ €13,93
49+ €13,62
99+ €12,85
499+ €10,84
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 22mm
D - Outside diameter 34mm
C - Width of bearing, drawn cup or outer ring 16mm
F - Under roller diameter 26mm
rs - Minimum fillet radius 0.3mm
s - Max axial offset 0.5mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 2.5mm
Inner ring reference 1R22X26X16
Lubrication hole on innr ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 15.6 kN
C0r - Static load rating 23.6 kN
N - Grease lubrication limit speed 10000 tr/min
N - Oil lubrication limit speed 15000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
da min - Inner ring minimum shoulder diameter 24mm
Da max - Outer ring maximum shoulder diameter 32mm
ras max - Maximum shaft & housing fillet radius 0.3mm
