SKU: NK32/30-EU

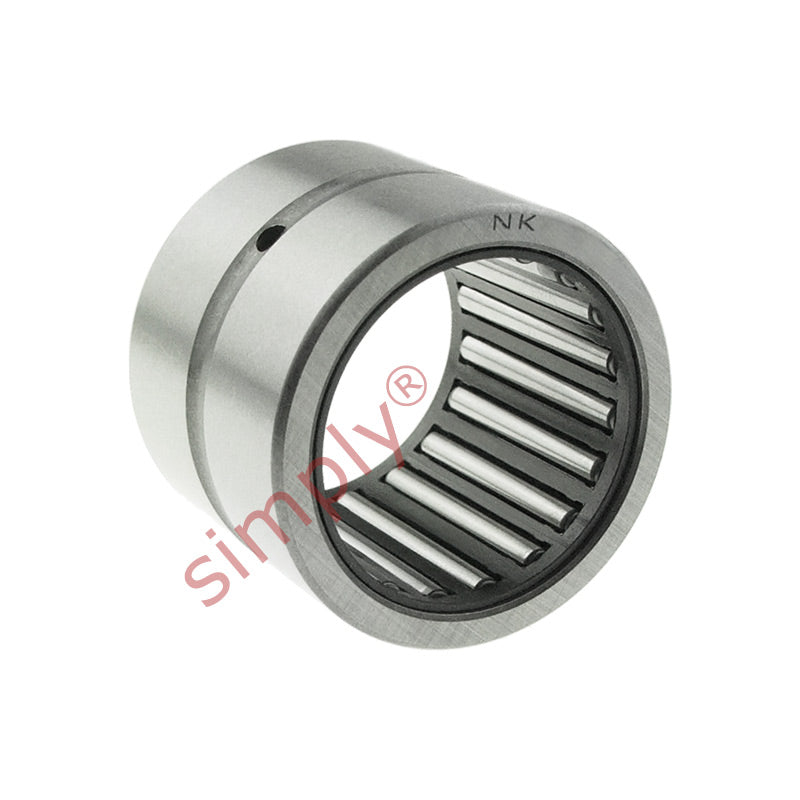

NK32/30 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 32x42x30mm
NK32/30 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 32x42x30mm
Regular price
€10,95
ex VAT
Regular price
Sale price
€10,95
ex VAT
In stock
Price Break
10+
€7,62
19+
€7,19
29+
€7,10
39+
€7,02
49+
€6,93
74+
€6,85
99+
€6,42
199+
€6,33
249+
€6,25
499+
€6,16
999+
€5,99
Description
Description
|
Budget Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 32mm
- Outside Diameter:
- 42mm
- Width:
- 30mm
Technical
Technical
| Fw | 32mm |
|---|---|
| D | 42mm |
| C | 30mm |
| Dynamic load C | 34100 N |
| Static load Co | 65500 N |
| Fatigue load limit Pu | 8650 N |
| Speed in grease | 8000 rpm |
| Speed in oil | 12000 rpm |
| r1r2 | 0.3mm |
| Da max | 40mm |
| ra max | 0.3mm |
| Seal | G/SD32x42x4 |
| Weight | 100 g |
