SKU: NK5/12T2-NTN

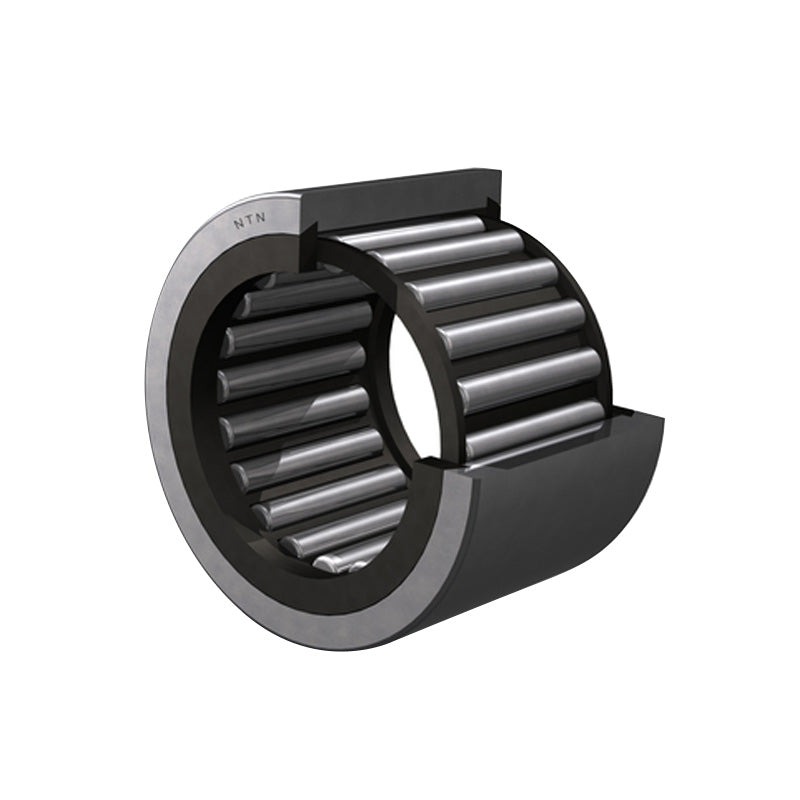

NTN NK5/12T2 Machined Needle Roller Bearing with Polyamide Cage no Shaft Sleeve 5x10x12mm

NTN NK5/12T2 Machined Needle Roller Bearing with Polyamide Cage no Shaft Sleeve 5x10x12mm
Regular price €8,95 ex VAT
Regular price Sale price €8,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €6,65
4+ €6,27
9+ €6,20
19+ €6,13
49+ €6,05
99+ €5,98
499+ €5,60
999+ €5,53
1999+ €5,45
2999+ €5,38
4999+ €5,23
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 5mm
D - Outside diameter 10mm
C - Width of bearing, drawn cup or outer ring 12mm
rs - Minimum fillet radius 0.15mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 2mm
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 2.72 kN
C0r - Static load rating 2.25 kN
N - Grease lubrication limit speed 27000 tr/min
N - Oil lubrication limit speed 40000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
Da max - Outer ring maximum shoulder diameter 6.5mm
ras max - Maximum shaft & housing fillet radius 0.15mm
