SKU: NK50/35TN-EU

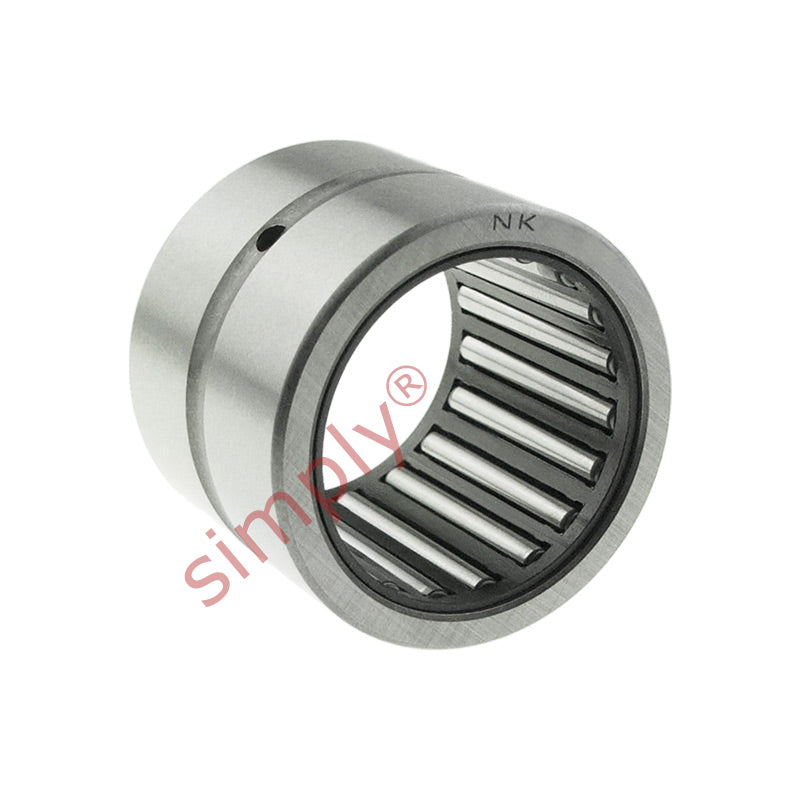

NK50/35TN Budget Needle Roller Bearing with Flanges no Shaft Sleeve 50x62x35mm
NK50/35TN Budget Needle Roller Bearing with Flanges no Shaft Sleeve 50x62x35mm
Regular price
€18,95
ex VAT
Regular price
Sale price
€18,95
ex VAT
In stock
Price Break
10+
€14,10
19+
€13,31
29+
€13,15
39+
€12,99
49+
€12,83
74+
€12,67
99+
€11,88
199+
€11,72
249+
€11,56
499+
€11,40
999+
€11,09
Description
Description
|
Budget Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 62mm
- Width:
- 35mm
Technical
Technical
| Fw | 50mm |
|---|---|
| D | 62mm |
| C | 35mm |
| Dynamic load C | 49500 N |
| Static load Co | 110000 N |
| Fatigue load limit Pu | 14300 N |
| Speed in grease | 5600 rpm |
| Speed in oil | 8000 rpm |
| r1r2 | 0.6mm |
| Da max | 58mm |
| ra max | 0.6mm |
| Seal | G/SD50x62x4 |
| Weight | 220 g |
