SKU: NK8/16TN-EU

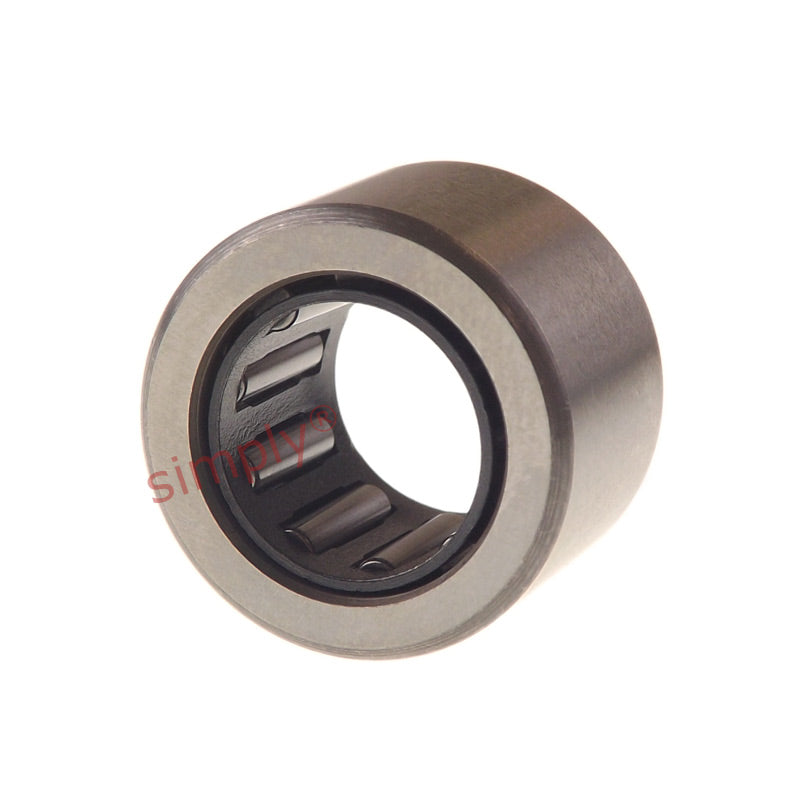

NK8/16TN Budget Needle Roller Bearing with Flanges no Shaft Sleeve 8x15x16mm
NK8/16TN Budget Needle Roller Bearing with Flanges no Shaft Sleeve 8x15x16mm
Regular price
€8,49
ex VAT
Regular price
Sale price
€8,49
ex VAT
In stock
Price Break
10+
€7,56
19+
€7,13
29+
€7,05
39+
€6,96
49+
€6,88
74+
€6,79
99+
€6,37
199+
€6,28
249+
€6,20
499+
€6,11
999+
€5,94
Couldn't load pickup availability
Description
Description
|
Budget Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 15mm
- Width:
- 16mm
Technical
Technical
| Fw | 8mm |
|---|---|
| D | 15mm |
| C | 16mm |
| Dynamic load C | 5010 N |
| Static load Co | 5850 N |
| Fatigue load limit Pu | 670 N |
| Speed in grease | 28000 rpm |
| Speed in oil | 40000 rpm |
| r1r2 | 0.3mm |
| Da max | 13mm |
| ra max | 0.3mm |
| Seal | G/SD8x15x3 |
| Weight | 12 g |
