SKU: NKI5/16TN-EU

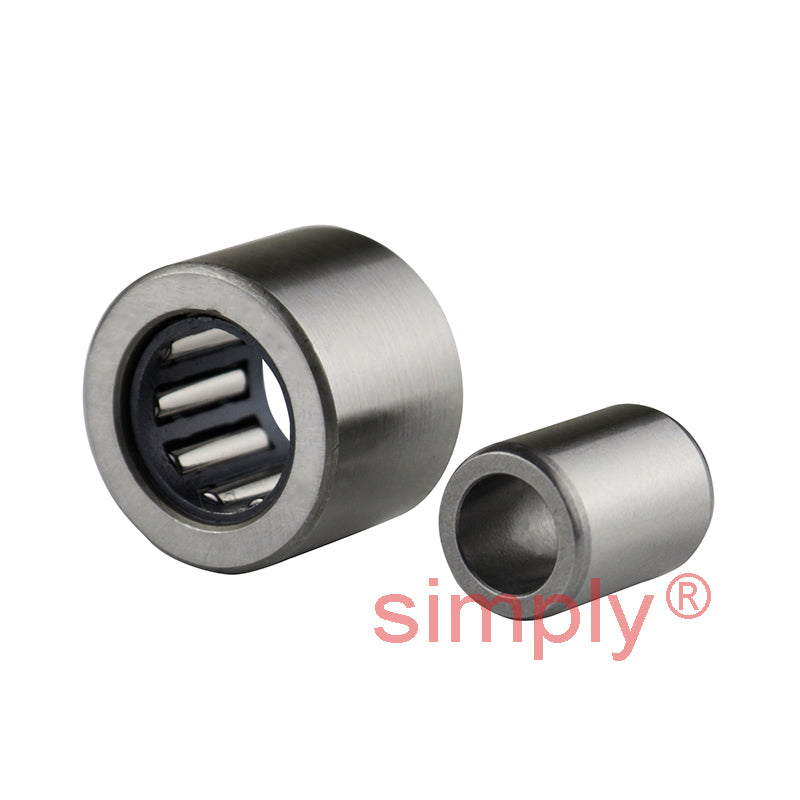

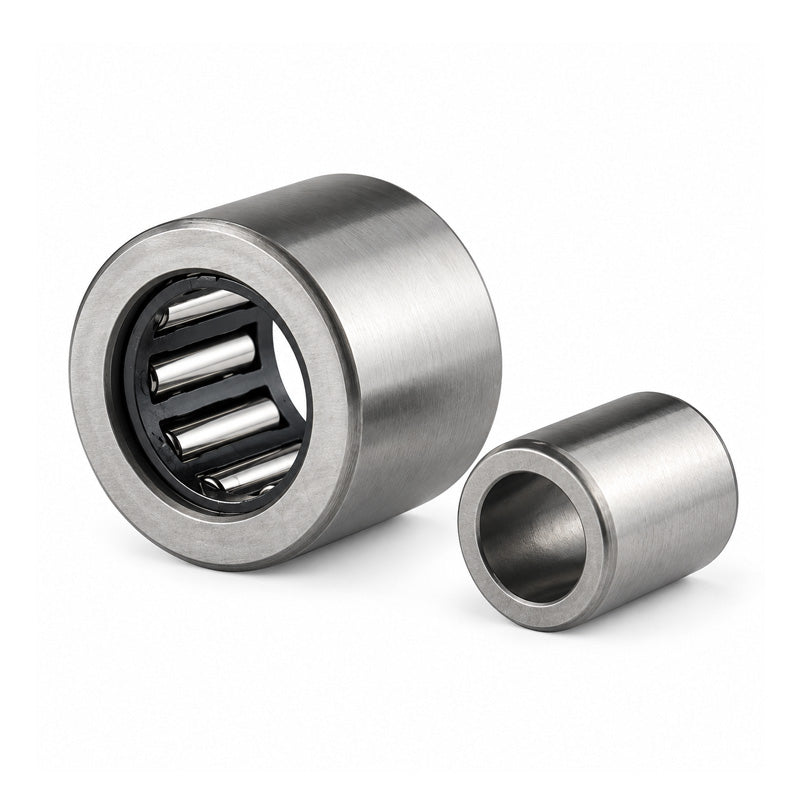

NKI5/16TN Budget Needle Roller Bearing / Shaft Sleeve 5x15x16mm
NKI5/16TN Budget Needle Roller Bearing / Shaft Sleeve 5x15x16mm
Regular price
€13,95
ex VAT
Regular price
Sale price
€13,95
ex VAT
In stock
Price Break
10+
€10,09
19+
€9,53
29+
€9,41
39+
€9,30
49+
€9,19
74+
€9,07
99+
€8,51
199+
€8,39
249+
€8,28
499+
€8,17
999+
€7,94
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 5mm
- Outside Diameter:
- 15mm
- Width:
- 16mm
Technical
Technical
| d | 5mm |
|---|---|
| D | 15mm |
| B | 16mm |
| Dynamic load C | 5010 N |
| Static load Co | 5850 N |
| Fatigue load limit Pu | 670 N |
| Speed in grease | 28000 rpm |
| Speed in oil | 40000 rpm |
| F | 8mm |
| r1r2 | 0.3mm |
| S (axial disp) | 2mm |
| da min | 7mm |
| Da max | 13mm |
| ra max | 0.3mm |
