SKU: NKI6/12-EU

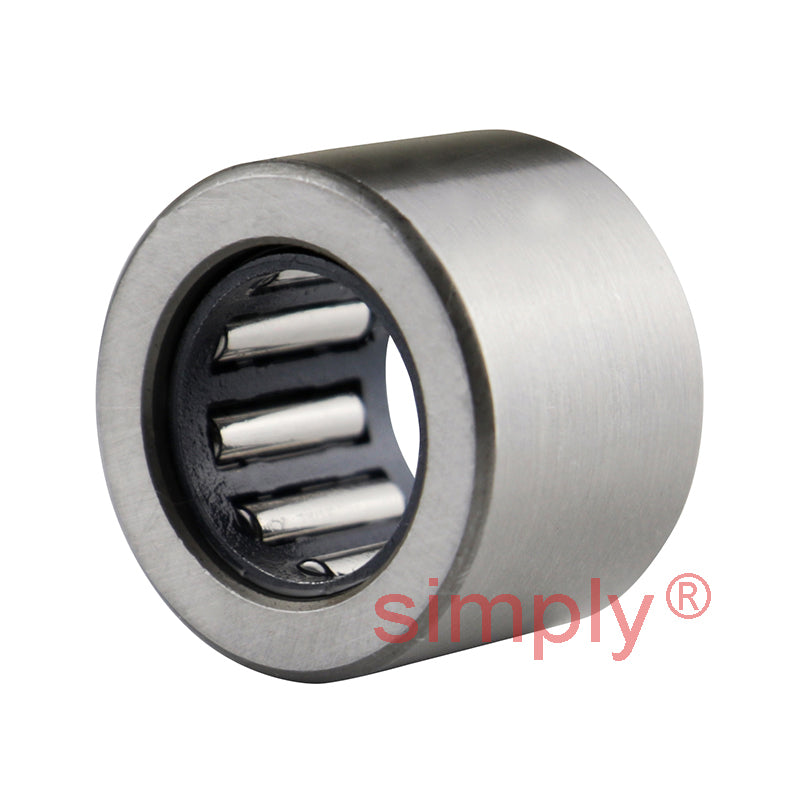

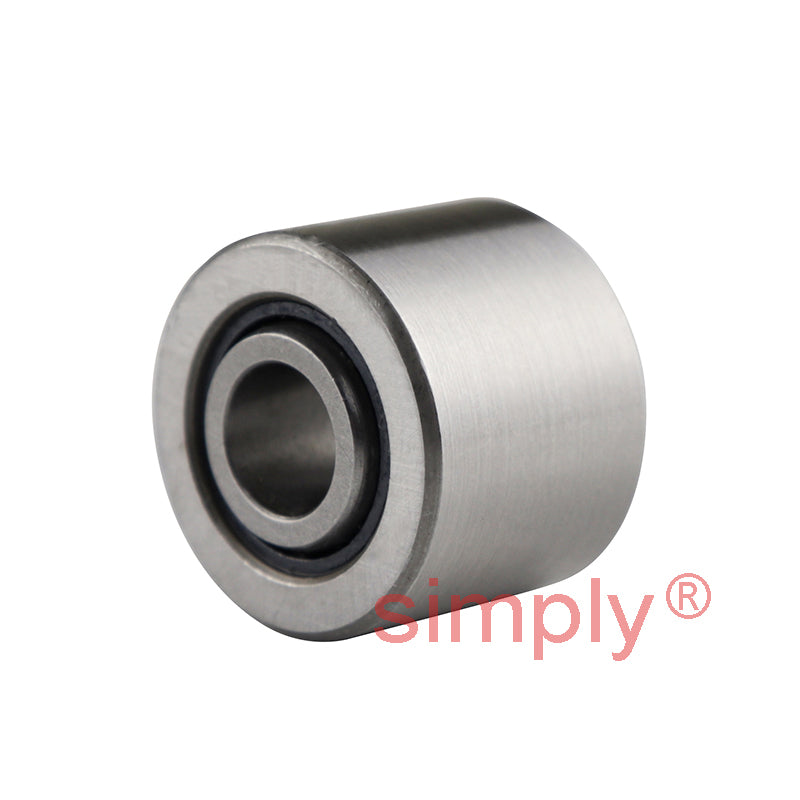

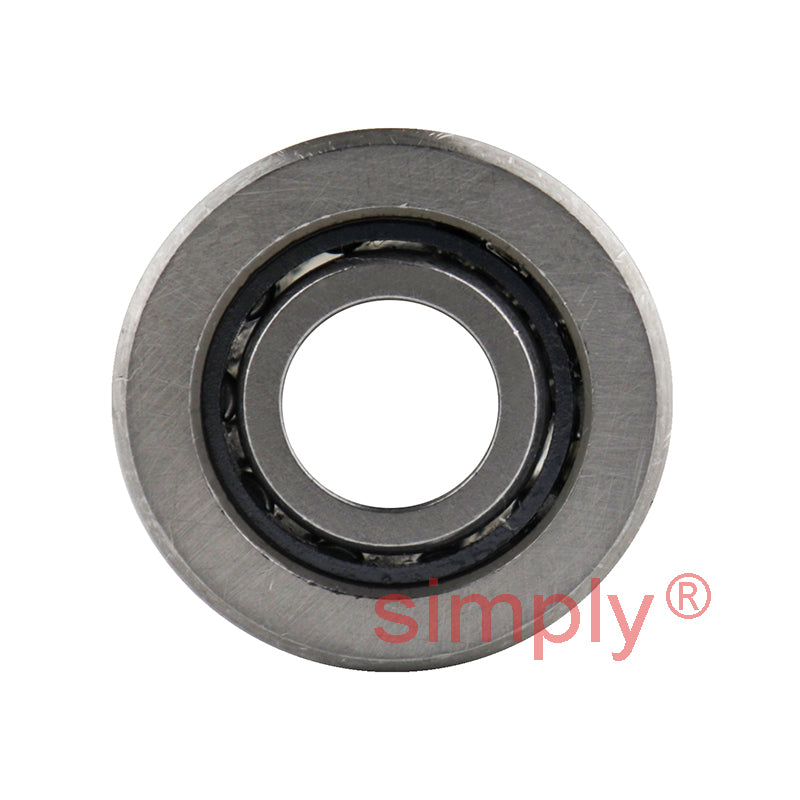

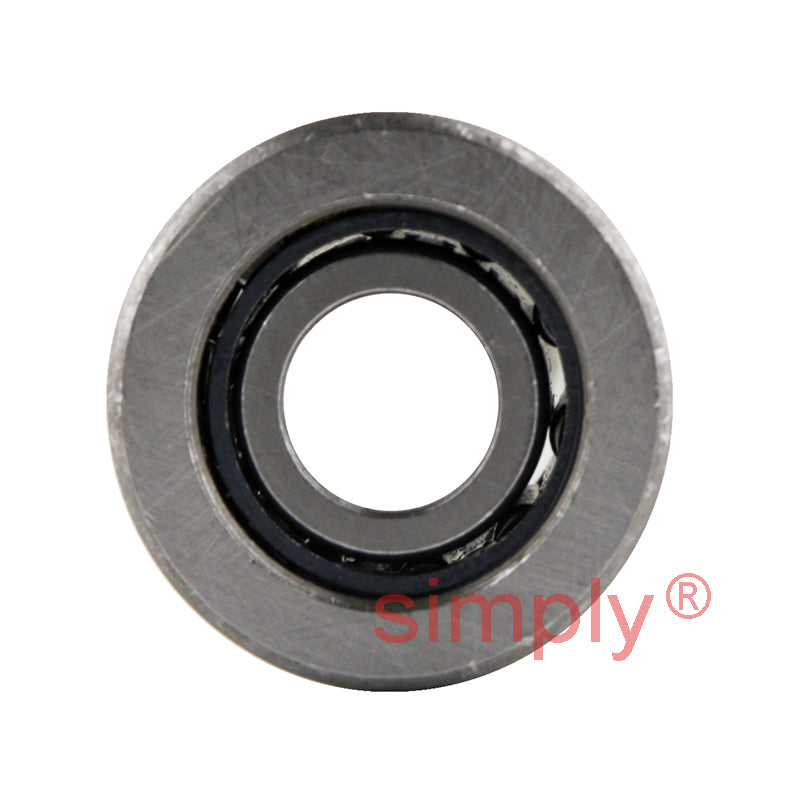

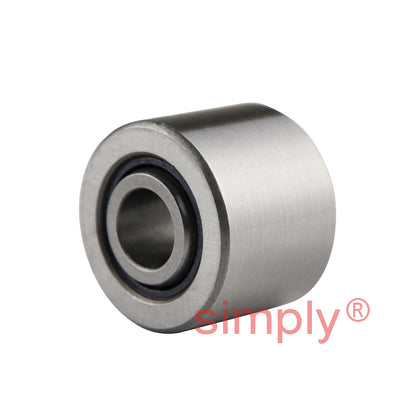

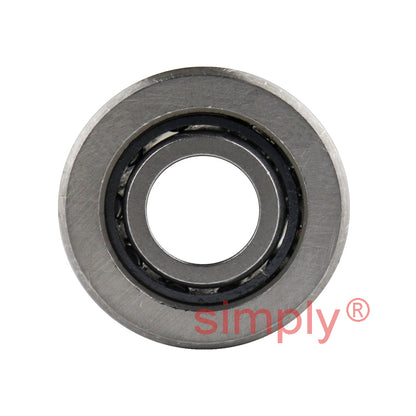

NKI6/12 Budget Needle Roller Bearing / Shaft Sleeve 6x16x12mm
NKI6/12 Budget Needle Roller Bearing / Shaft Sleeve 6x16x12mm
Regular price
€11,95
ex VAT
Regular price
Sale price
€11,95
ex VAT
In stock
Price Break
10+
€8,44
19+
€7,96
29+
€7,87
39+
€7,77
49+
€7,68
74+
€7,58
99+
€7,11
199+
€7,01
249+
€6,92
499+
€6,82
999+
€6,63
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 6mm
- Outside Diameter:
- 16mm
- Width:
- 12mm
Technical
Technical
| d | 6mm |
|---|---|
| D | 16mm |
| B | 12mm |
| Dynamic load C | 4400 N |
| Static load Co | 5200 N |
| Fatigue load limit Pu | 570 N |
| Speed in grease | 24000 rpm |
| Speed in oil | 36000 rpm |
| F | 9mm |
| r1r2 | 0.3mm |
| S (axial disp) | 1.5mm |
| da min | 8mm |
| Da max | 14mm |
| ra max | 0.3mm |
