SKU: NKI9/16-MB

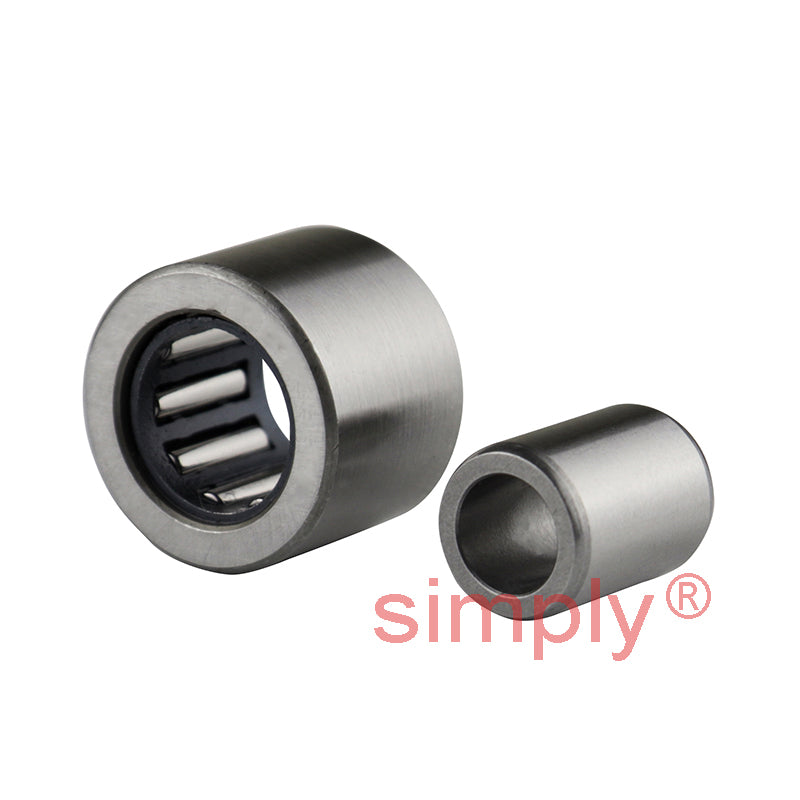

Major Brand NKI9/16 Needle Roller Bearing With Shaft Sleeve 9x19x16mm

Name: Major Brand NKI9/16 Needle Roller Bearing With Shaft Sleeve 9x19x16mm
Brand: Major Brand
SKU: NKI9/16-MB
Price: 21.95 EUR
Availability: InStock

€21,95 ex VAT

Sale Sold out

In stock

Price Break

10+ €16,00

19+ €15,10

29+ €14,92

39+ €14,74

49+ €14,57

74+ €14,39

99+ €13,49

199+ €13,31

249+ €13,13

499+ €12,95

999+ €12,59

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve.
Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: 9mm
Outside Diameter:: 19mm
Width:: 16mm

Technical

d	9mm
D	19mm
B	16mm
Dynamic load	9130 N
Static load	12000 N
Fatigue load limit Pu	1460 N
Speed in grease	19000 rpm
Speed in oil	30000 rpm
F	12mm
r1r2	0.3mm
S (axial disp)	2mm
da min	11mm
Da max	17mm
ra max	0.3mm
