SKU: NKIA5902-MB

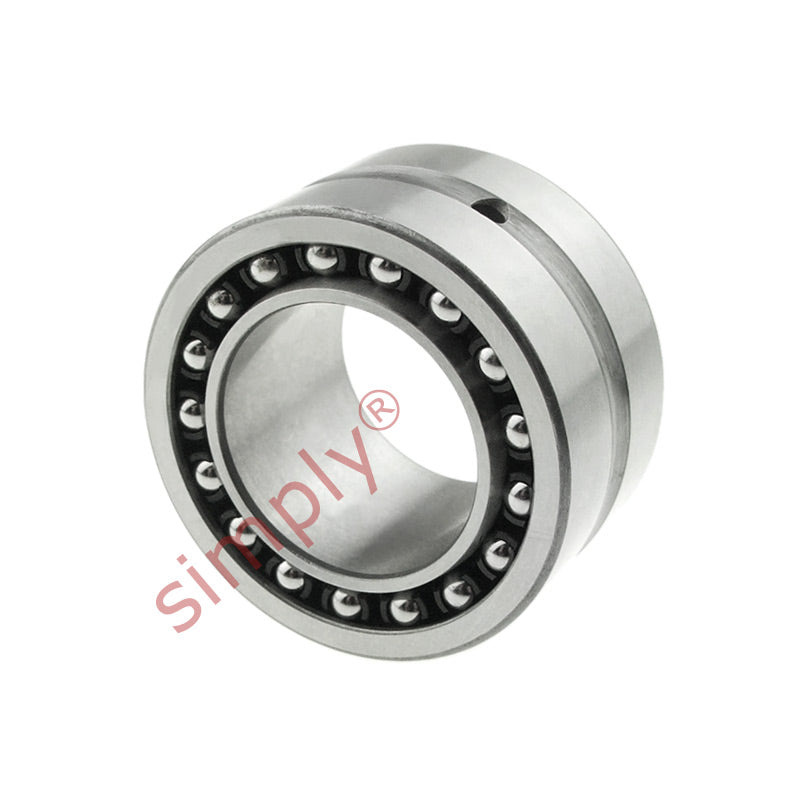

Major Brand NKIA5902 Needle Roller / Angular Contact Ball Bearing Assembly Single Direction Series
Major Brand NKIA5902 Needle Roller / Angular Contact Ball Bearing Assembly Single Direction Series
Regular price
€33,95
ex VAT
Regular price
Sale price
€33,95
ex VAT
In stock
Price Break
10+
€25,36
19+
€23,93
29+
€23,65
39+
€23,36
49+
€23,08
74+
€22,79
99+
€21,37
199+
€21,08
249+
€20,80
499+
€20,51
999+
€19,94
Share this product
Description
Description
Needle Roller / Angular Contact Combined : Accommodating thrust loads in a single direction and are easily mountable as they are supplied with a separable inner ring. (Use NKIB type where dual direction thrust loads are required) |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 28mm
- Width:
- 18mm
Technical
Technical
| d | 15mm |
|---|---|
| D | 28mm |
| B | 18mm |
| Radial dynamic load | 11400 N |
| Radial static load | 15600 N |
| Axial dynamic load | 2270 N |
| Axial static load | 2370 N |
| Fatigue load limit radial Pu | 1830 N |
| Fatigue load limit axial Pu | 99 N |
| Speed in grease | 13000 rpm |
| Speed in oil | 19000 rpm |
| F | 20mm |
| r1r2 | 0.3mm |
| da min | 17mm |
| Da max | 26mm |
| ra max | 0.3mm |
