SKU: NKIA5907-EU

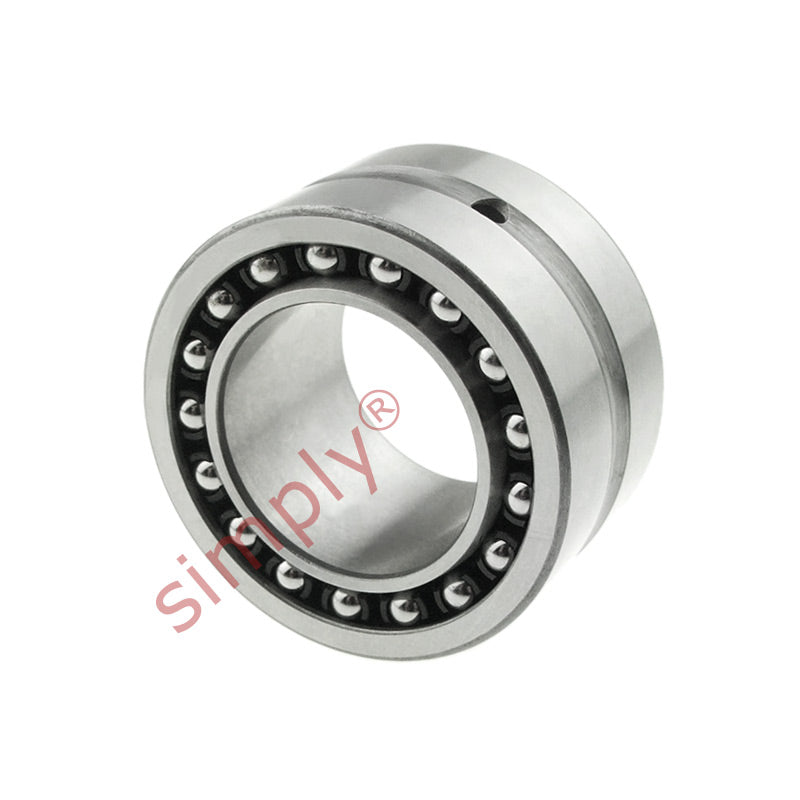

NKIA5907 Budget Needle Roller / Angular Contact Ball Bearing 35x55x27mm
NKIA5907 Budget Needle Roller / Angular Contact Ball Bearing 35x55x27mm
Regular price
€29,76
ex VAT
Regular price
Sale price
€29,76
ex VAT
In stock
Price Break
10+
€26,49
19+
€25,00
29+
€24,70
39+
€24,40
49+
€24,11
74+
€23,81
99+
€22,32
199+
€22,02
249+
€21,72
499+
€21,43
999+
€20,83
Couldn't load pickup availability
Description
Description
Budget Needle Roller / Angular Contact Combined: Accommodating thrust loads in a single direction and are easily mountable as they are supplied with a separable inner ring. (Use NKIB type where dual direction thrust loads are required) |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 55mm
- Width:
- 27mm
Technical
Technical
| d | 35mm |
|---|---|
| D | 55mm |
| B | 27mm |
| Radial dynamic load | 31900 N |
| Radial static load | 54000 N |
| Axial dynamic load | 5830 N |
| Axial static load | 8420 N |
| Fatigue load limit radial Pu | 6700 N |
| Fatigue load limit axial Pu | 355 N |
| Speed in grease | 6700 rpm |
| Speed in oil | 9500 rpm |
| F | 42mm |
| r1r2 | 0.6mm |
| da min | 39mm |
| Da max | 51mm |
| ra max | 0.6mm |
| Weight | 240 g |
