SKU: NKIA5910-EU

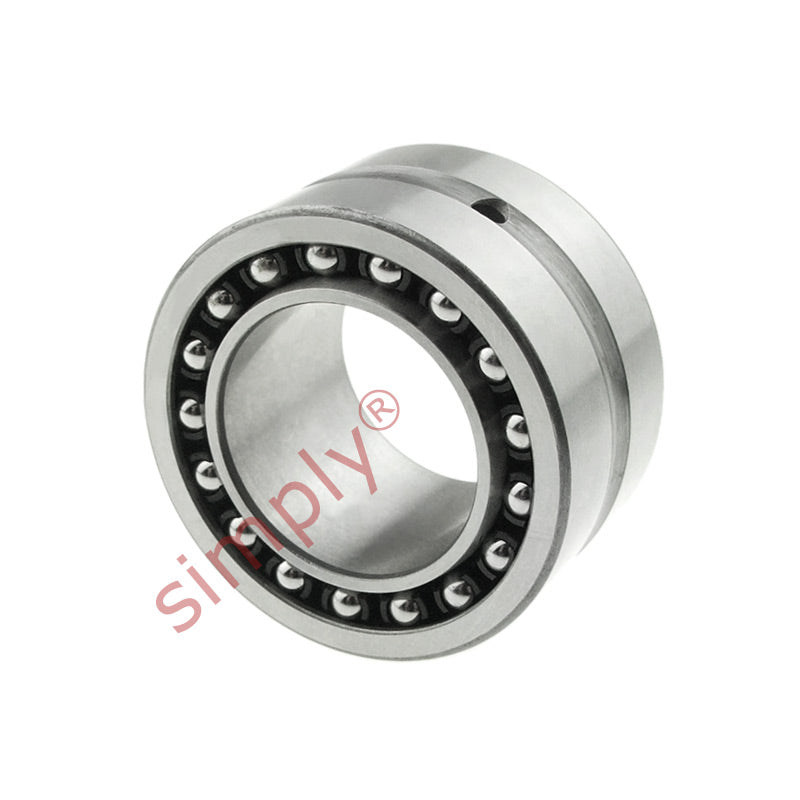

NKIA5910 Budget Needle Roller / Angular Contact Ball Bearing 50x72x30mm
NKIA5910 Budget Needle Roller / Angular Contact Ball Bearing 50x72x30mm
Regular price
€87,56
ex VAT
Regular price
Sale price
€87,56
ex VAT
In stock
Price Break
10+
€77,93
19+
€73,55
29+
€72,67
39+
€71,80
49+
€70,92
74+
€70,05
99+
€65,67
199+
€64,79
249+
€63,92
499+
€63,04
999+
€61,29
Couldn't load pickup availability
Description
Description
Budget Needle Roller / Angular Contact Combined: Accommodating thrust loads in a single direction and are easily mountable as they are supplied with a separable inner ring. (Use NKIB type where dual direction thrust loads are required) |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 72mm
- Width:
- 30mm
Technical
Technical
| d | 50mm |
|---|---|
| D | 72mm |
| B | 30mm |
| Radial dynamic load | 47300 N |
| Radial static load | 85000 N |
| Axial dynamic load | 7740 N |
| Axial static load | 13700 N |
| Fatigue load limit radial Pu | 10600 N |
| Fatigue load limit axial Pu | 579 N |
| Speed in grease | 5000 rpm |
| Speed in oil | 7000 rpm |
| F | 58mm |
| r1r2 | 0.6mm |
| da min | 54mm |
| Da max | 68mm |
| ra max | 0.6mm |
| Weight | 380 g |
