SKU: NKIB5909-EU

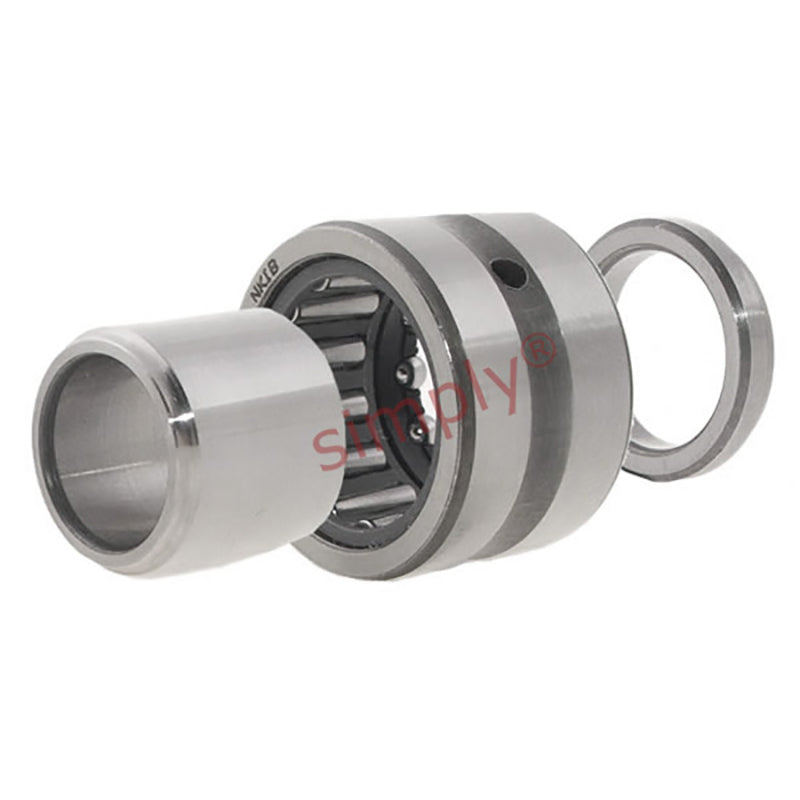

NKIB5909 Budget Needle Roller / Angular Contact Ball Bearing 45x68x34mm
NKIB5909 Budget Needle Roller / Angular Contact Ball Bearing 45x68x34mm
Regular price
€94,95
ex VAT
Regular price
Sale price
€94,95
ex VAT
In stock
Price Break
10+
€71,82
19+
€67,79
29+
€66,98
39+
€66,17
49+
€65,37
74+
€64,56
99+
€60,52
199+
€59,72
249+
€58,91
499+
€58,10
999+
€56,49
Share this product
Description
Description
Budget Needle Roller / Angular Contact Combined: Accommodating thrust loads in a two directions and are easily mountable as they are supplied with a separable inner ring. (Use NKIA where single direction thrust loads are required) |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 68mm
- Width:
- 34mm
Technical
Technical
| d | 45mm |
|---|---|
| D | 68mm |
| B | 34mm |
| C | 30mm |
| Radial dynamic load | 45700 N |
| Radial static load | 78000 N |
| Axial dynamic load | 7470 N |
| Axial static load | 12000 N |
| Fatigue load limit radial Pu | 9650 N |
| Fatigue load limit axial Pu | 513 N |
| Speed in grease | 5300 rpm |
| Speed in oil | 7500 rpm |
| F | 52mm |
| r1r2 | 0.6mm |
| da min | 49mm |
| Da max | 64mm |
| ra max | 0.6mm |
| Weight | 380 g |
