SKU: NKIS45-MB

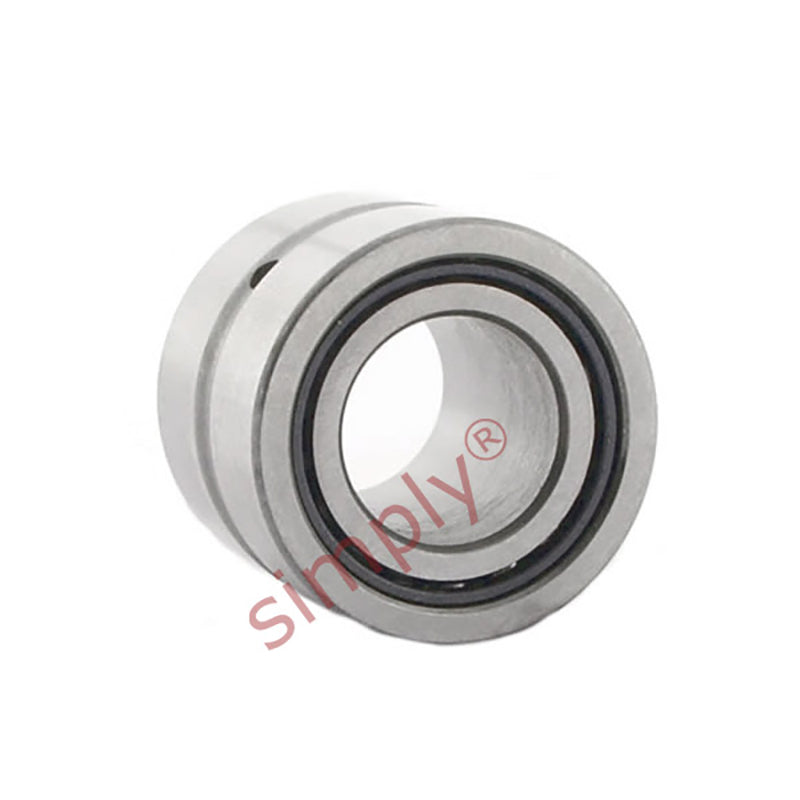

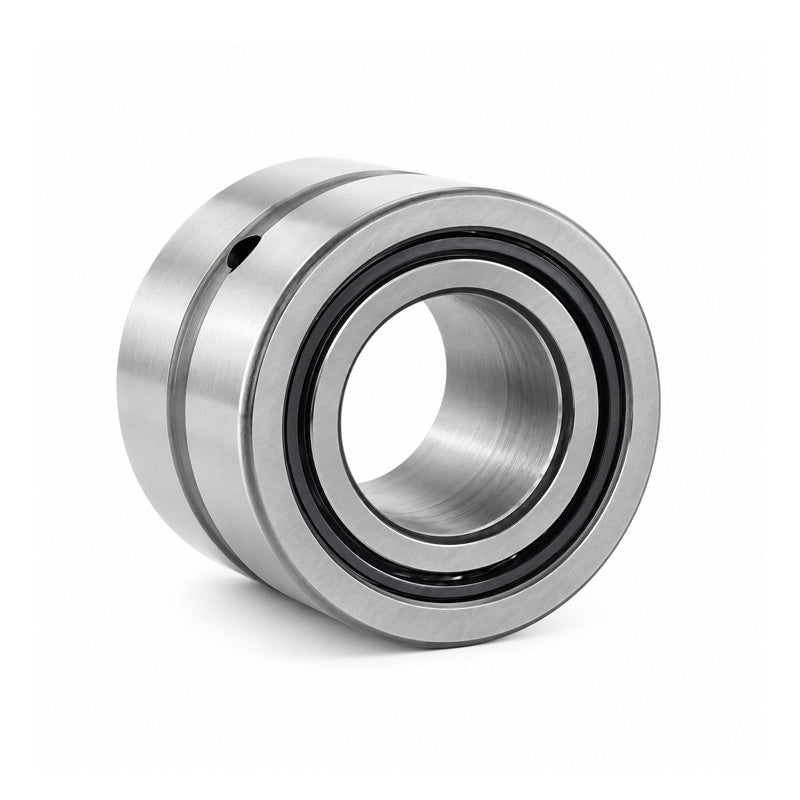

Major Brand NKIS45 Needle Roller Bearing With Shaft Sleeve 45x72x22mm

Name: Major Brand NKIS45 Needle Roller Bearing With Shaft Sleeve 45x72x22mm
Brand: Major Brand
SKU: NKIS45-MB
Price: 68.95 EUR
Availability: InStock

€68,95 ex VAT

Sale Sold out

In stock

Price Break

10+ €52,50

19+ €49,55

29+ €48,96

39+ €48,37

49+ €47,78

74+ €47,19

99+ €44,24

199+ €43,65

249+ €43,06

499+ €42,47

999+ €41,29

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve
Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: 45mm
Outside Diameter:: 72mm
Width:: 22mm

Technical

d	45mm
D	72mm
B	22mm
Dynamic load	44600 N
Static load	78000 N
Fatigue load limit Pu	10000 N
Speed in grease	5000 rpm
Speed in oil	7000 rpm
F	55mm
r1r2	1mm
S (axial disp)	0.5mm
da min	50mm
Da max	67mm
ra max	1mm
