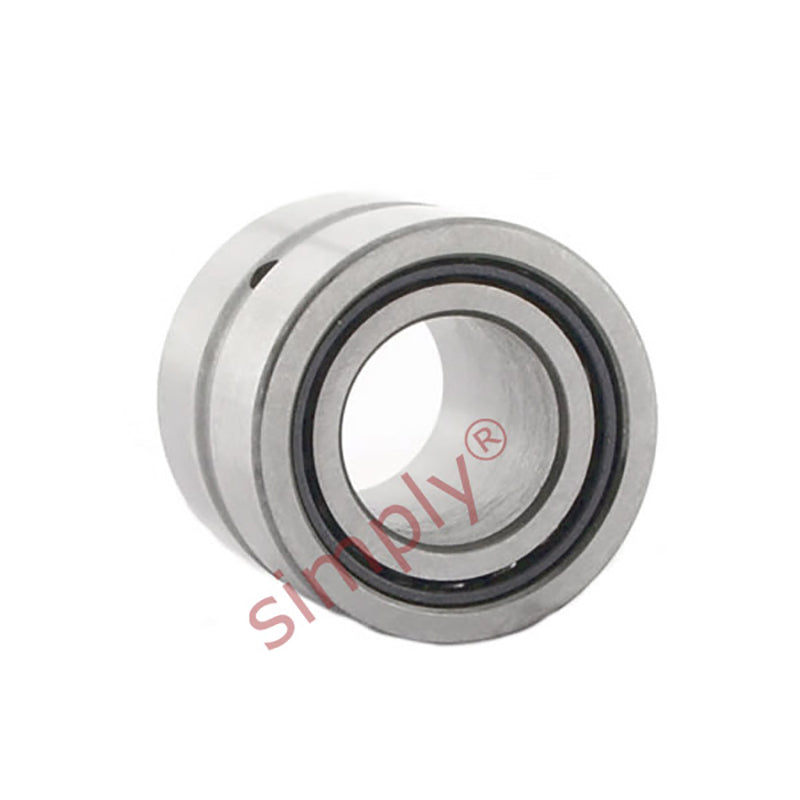

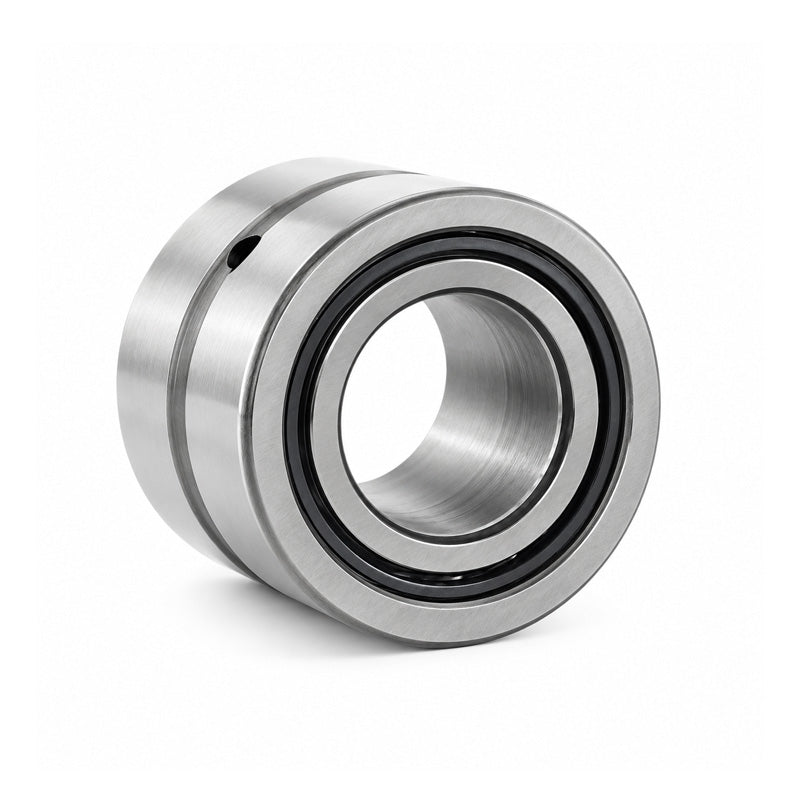

NKIS60 Budget Needle Roller Bearing / Shaft Sleeve 60x90x28mm
NKIS60 Budget Needle Roller Bearing / Shaft Sleeve 60x90x28mm
Regular price
€82,95
ex VAT
Regular price
Sale price
€82,95
ex VAT
In stock
Price Break
10+
€62,82
19+
€59,29
29+
€58,58
39+
€57,88
49+
€57,17
74+
€56,46
99+
€52,94
199+
€52,23
249+
€51,52
499+
€50,82
999+
€49,41
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 90mm
- Width:
- 28mm
Technical
Technical
| d | 60mm |
|---|---|
| D | 90mm |
| B | 28mm |
| Dynamic load C | 68200 N |
| Static load Co | 120000 N |
| Fatigue load limit Pu | 15600 N |
| Speed in grease | 4000 rpm |
| Speed in oil | 5600 rpm |
| F | 70mm |
| r1r2 | 1.1mm |
| S (axial disp) | 2mm |
| da min | 66.5mm |
| Da max | 83.5mm |
| ra max | 1mm |
