SKU: NKXR15-EU

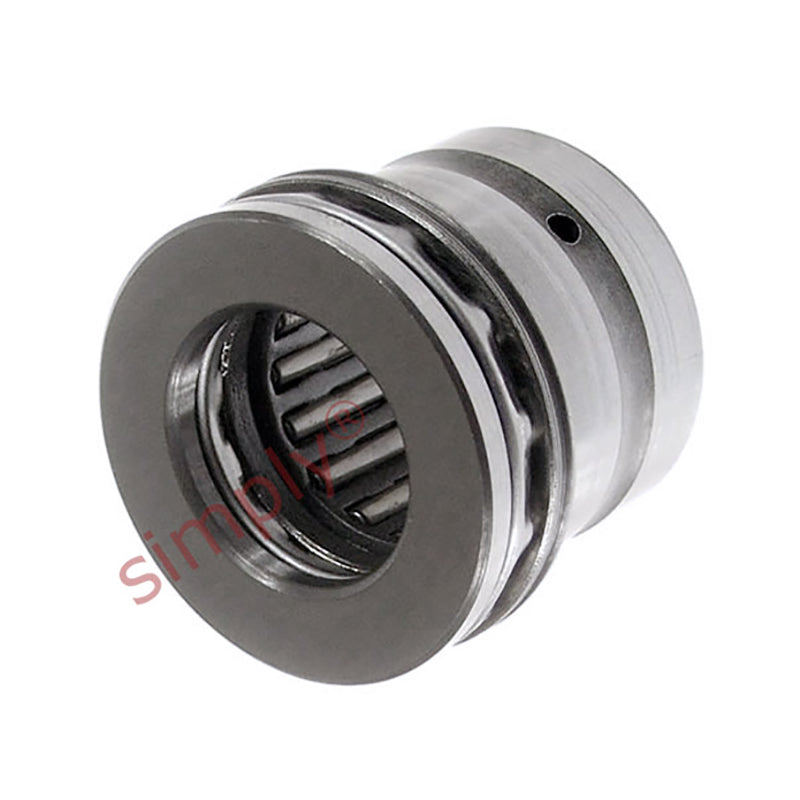

NKXR15 Budget Needle Roller Thrust Bearing without Cover 15x24x23mm
NKXR15 Budget Needle Roller Thrust Bearing without Cover 15x24x23mm
Regular price
€35,95
ex VAT
Regular price
Sale price
€35,95
ex VAT
In stock
Price Break
10+
€26,75
19+
€25,25
29+
€24,95
39+
€24,65
49+
€24,35
74+
€24,05
99+
€22,54
199+
€22,24
249+
€21,94
499+
€21,64
999+
€21,04
Description
Description
Budget Needle Roller / Ball Roller Thrust Combination: Of a separable design, the outer ring with integral housing washer and integral needle roller cage assembly, the ball roller and the shaft washer can all be mounted individually. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 24mm
- Width:
- 23mm
Technical
Technical
| Fw | 15mm |
|---|---|
| D | 24mm |
| C | 23mm |
| Dynamic load | 11200 N |
| Static load | 14000 N |
| Axial dynamic load | 11200 N |
| Axial static load | 27000 N |
| Fatigue load limit radial Pu | 1660 N |
| Fatigue load limit axial Pu | 2450 N |
| Min load factor A | 0.058 |
| Speed in grease | 3200 rpm |
| Speed in oil | 4300 rpm |
| C1 | 9mm |
| C2 | 6.5mm |
| d | 15mm |
| D1 | 28mm |
| r1r2 min | 0.3mm |
| da | 23.7mm |
| ra max | 0.3mm |
| rb max | 0.3mm |
| di | 12mm |
| F | 15mm |
| B1 | 16mm |
| Inner ring | IR12x15x16 |
| Weight | 42 g |
