SKU: NKXR20-EU

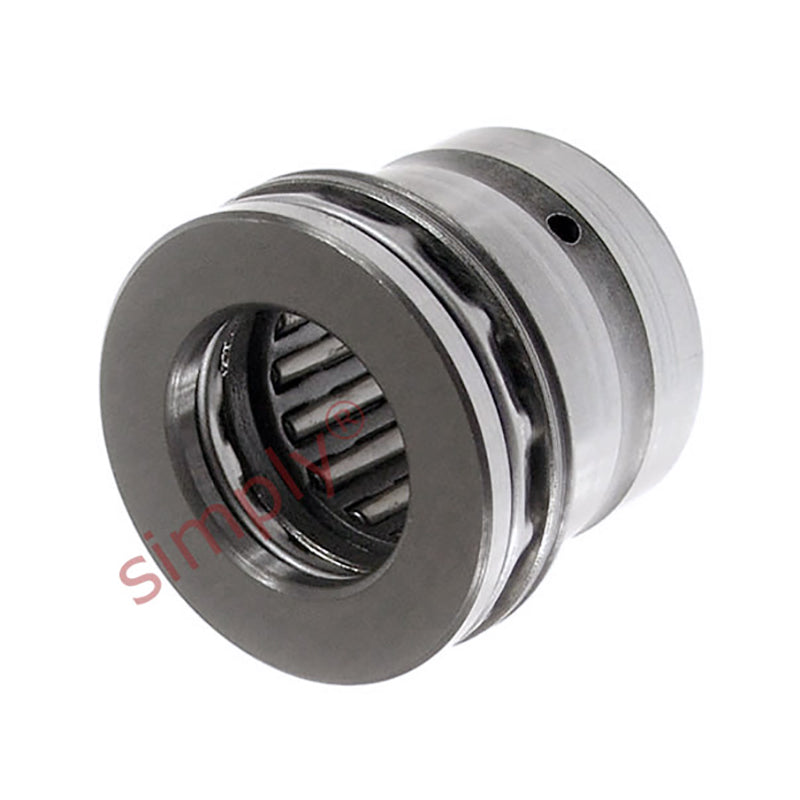

NKXR20 Budget Needle Roller Thrust Bearing without Cover 20x30x30mm
NKXR20 Budget Needle Roller Thrust Bearing without Cover 20x30x30mm
Regular price
€46,21
ex VAT
Regular price
Sale price
€46,21
ex VAT
In stock
Price Break
10+
€41,13
19+
€38,82
29+
€38,35
39+
€37,89
49+
€37,43
74+
€36,97
99+
€34,66
199+
€34,20
249+
€33,73
499+
€33,27
999+
€32,35
Couldn't load pickup availability
Description
Description
Budget Needle Roller / Ball Roller Thrust Combination: Of a separable design, the outer ring with integral housing washer and integral needle roller cage assembly, the ball roller and the shaft washer can all be mounted individually. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 30mm
- Width:
- 30mm
Technical
Technical
| Fw | 20mm |
|---|---|
| D | 30mm |
| C | 30mm |
| Dynamic load | 16800 N |
| Static load | 26000 N |
| Axial dynamic load | 18600 N |
| Axial static load | 48000 N |
| Fatigue load limit radial Pu | 3050 N |
| Fatigue load limit axial Pu | 4650 N |
| Min load factor A | 0.18 |
| Speed in grease | 2800 rpm |
| Speed in oil | 3800 rpm |
| C1 | 10mm |
| C2 | 10.5mm |
| d | 20mm |
| D1 | 35mm |
| r1r2 min | 0.3mm |
| da | 30.7mm |
| ra max | 0.3mm |
| rb max | 0.3mm |
| di | 17mm |
| F | 20mm |
| B1 | 20mm |
| Inner ring | IR17x20x20 |
| Weight | 80 g |
