SKU: NKXR20-MB

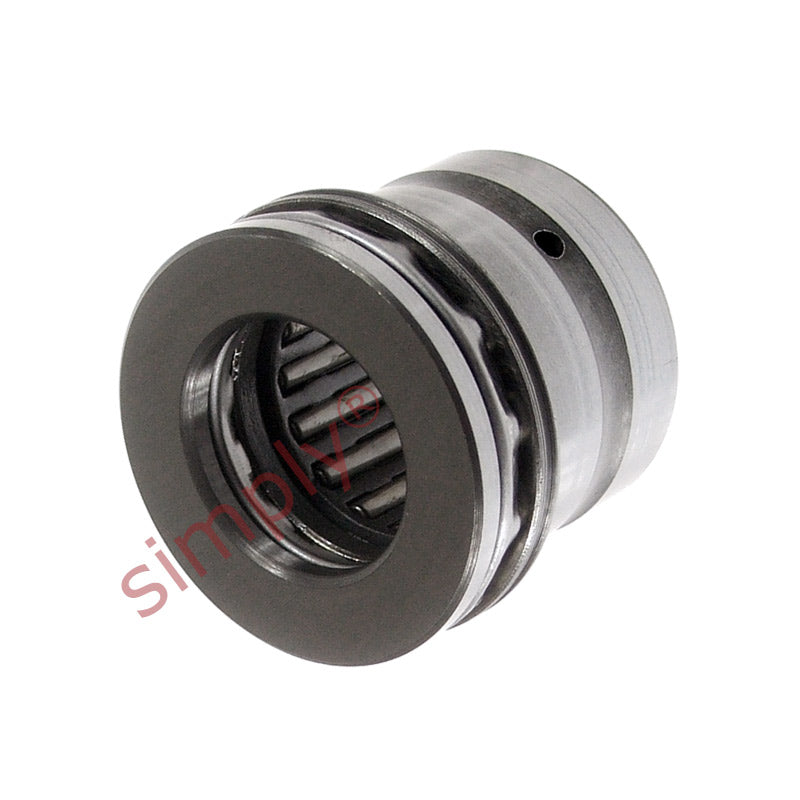

Major Brand NKXR20 Needle Roller Thrust Bearing without Cover 20x30x30mm
Major Brand NKXR20 Needle Roller Thrust Bearing without Cover 20x30x30mm
Regular price
€108,95
ex VAT
Regular price
Sale price
€108,95
ex VAT
In stock
Price Break
10+
€82,56
19+
€77,93
29+
€77,00
39+
€76,07
49+
€75,14
74+
€74,21
99+
€69,58
199+
€68,65
249+
€67,72
499+
€66,79
999+
€64,94
Description
Description
Needle Roller / Ball Roller Thrust Combination: Of a separable design, the outer ring with integral housing washer and integral needle roller cage assembly, the ball roller and the shaft washer can all be mounted individually. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 30mm
- Width:
- 30mm
Technical
Technical
| Fw | 20mm |
|---|---|
| D | 30mm |
| C | 30mm |
| Dynamic load | 16800 N |
| Static load | 26000 N |
| Axial dynamic load | 18600 N |
| Axial static load | 48000 N |
| Fatigue load limit radial Pu | 3050 N |
| Fatigue load limit axial Pu | 4650 N |
| Min load factor A | 0.18 |
| Speed in grease | 2800 rpm |
| Speed in oil | 3800 rpm |
| C1 | 10mm |
| C2 | 10.5mm |
| d | 20 |
