SKU: NKXR45-EU

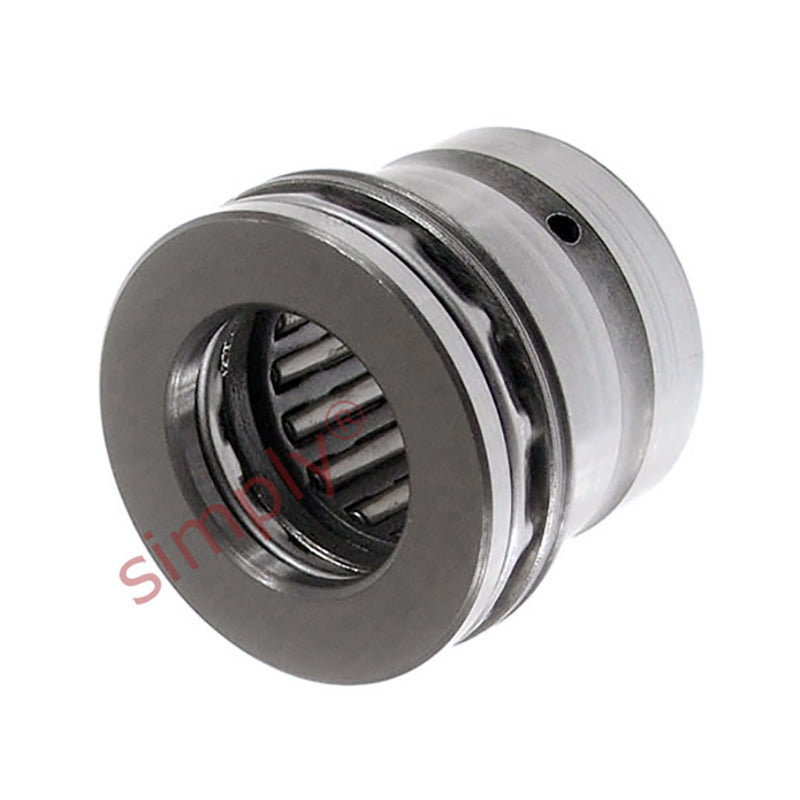

NKXR45 Budget Needle Roller Thrust Bearing without Cover 45x58x32mm
NKXR45 Budget Needle Roller Thrust Bearing without Cover 45x58x32mm
Regular price
€94,95
ex VAT
Regular price
Sale price
€94,95
ex VAT
In stock
Price Break
10+
€72,18
19+
€68,12
29+
€67,31
39+
€66,50
49+
€65,69
74+
€64,88
99+
€60,83
199+
€60,01
249+
€59,20
499+
€58,39
999+
€56,77
Description
Description
Budget Needle Roller / Ball Roller Thrust Combination: Of a separable design, the outer ring with integral housing washer and integral needle roller cage assembly, the ball roller and the shaft washer can all be mounted individually. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 58mm
- Width:
- 32mm

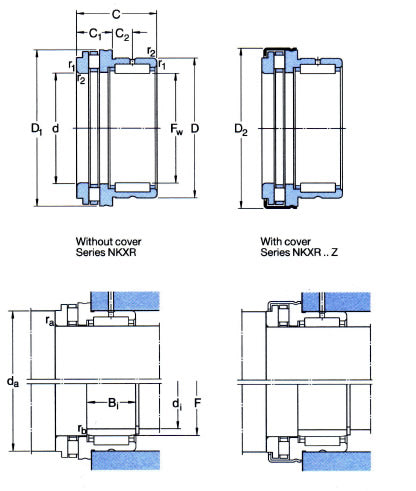

Technical
Technical
| Fw | 45mm |
|---|---|
| D | 58mm |
| C | 32mm |
| Dynamic load | 28100 N |
| Static load | 57000 N |
| Axial dynamic load | 45000 N |
| Axial static load | 153000 N |
| Fatigue load limit radial Pu | 7100 N |
| Fatigue load limit axial Pu | 15300 N |
| Min load factor A | 1.9 |
| Speed in grease | 1600 rpm |
| Speed in oil | 2200 rpm |
| C1 | 14mm |
| C2 | 9mm |
| d | 45mm |
| D1 | 65mm |
| r1r2 min | 0.6mm |
| da | 60.6mm |
| ra max | 0.6mm |
| rb max | 0.3mm |
| di | 40mm |
| F | 45mm |
| B1 | 20mm |
| Inner ring | IR40x45x20 |
| Weight | 240 g |
