SKU: NKXR45-MB

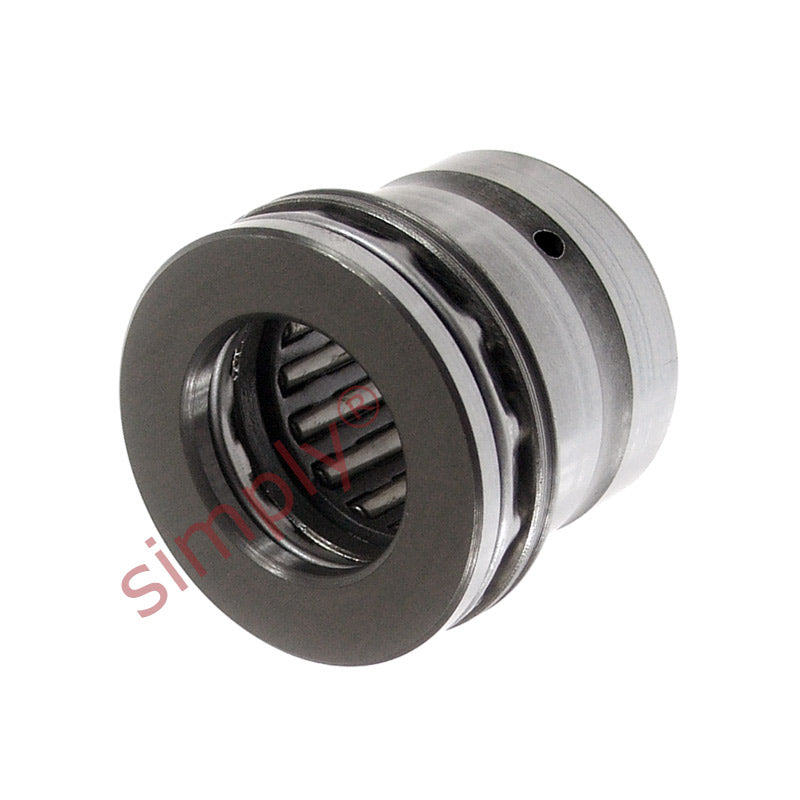

Major Brand NKXR45 Needle Roller Thrust Bearing without Cover 45x58x32mm
Major Brand NKXR45 Needle Roller Thrust Bearing without Cover 45x58x32mm
Regular price
€173,95
ex VAT
Regular price
Sale price
€173,95
ex VAT
In stock
Price Break
10+
€132,33
19+
€124,90
29+
€123,41
39+
€121,92
49+
€120,43
74+
€118,95
99+
€111,51
199+
€110,03
249+
€108,54
499+
€107,05
999+
€104,08
Description
Description
Needle Roller / Ball Roller Thrust Combination: Of a separable design, the outer ring with integral housing washer and integral needle roller cage assembly, the ball roller and the shaft washer can all be mounted individually. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 58mm
- Width:
- 32mm
Technical
Technical
| Fw | 45mm |
|---|---|
| D | 58mm |
| C | 32mm |
| Dynamic load | 28100 N |
| Static load | 57000 N |
| Axial dynamic load | 45000 N |
| Axial static load | 153000 N |
| Fatigue load limit radial Pu | 7100 N |
| Fatigue load limit axial Pu | 15300 N |
| Min load factor A | 1.9 |
| Speed in grease | 1600 rpm |
| Speed in oil | 2200 rpm |
| C1 | 14mm |
| C2 | 9mm |
| d | 45 |
