SKU: NKXR50-EU

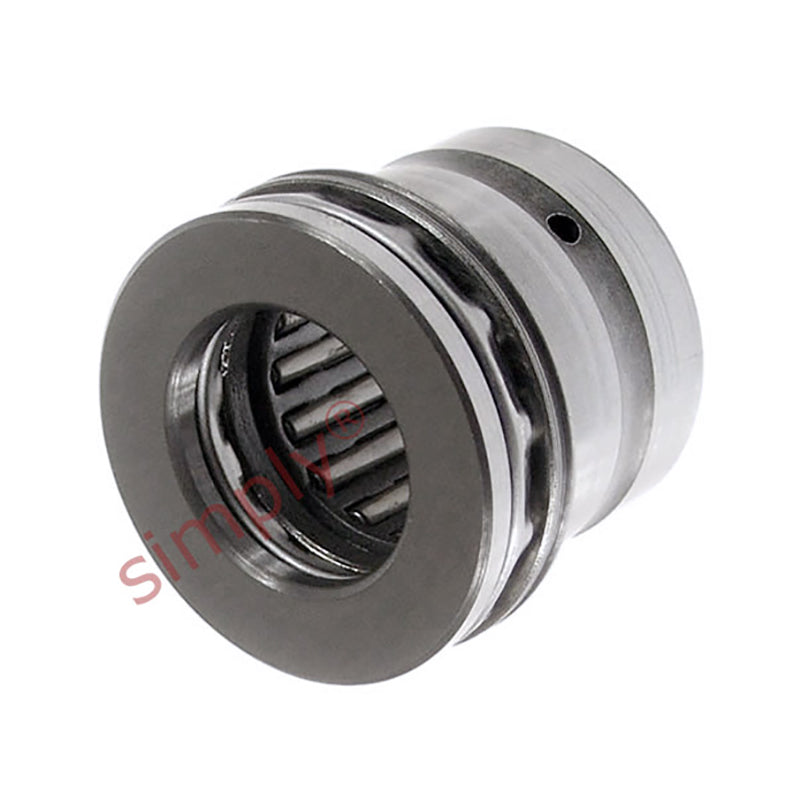

NKXR50 Budget Needle Roller Thrust Bearing without Cover 50x62x35mm
NKXR50 Budget Needle Roller Thrust Bearing without Cover 50x62x35mm
Regular price
€106,95
ex VAT
Regular price
Sale price
€106,95
ex VAT
In stock
Price Break
10+
€80,70
19+
€76,17
29+
€75,26
39+
€74,36
49+
€73,45
74+
€72,54
99+
€68,01
199+
€67,10
249+
€66,19
499+
€65,29
999+
€63,47
Description
Description
Budget Needle Roller / Ball Roller Thrust Combination: Of a separable design, the outer ring with integral housing washer and integral needle roller cage assembly, the ball roller and the shaft washer can all be mounted individually. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 62mm
- Width:
- 35mm
Technical
Technical
| Fw | 50mm |
|---|---|
| D | 62mm |
| C | 35mm |
| Dynamic load | 38000 N |
| Static load | 80000 N |
| Axial dynamic load | 47500 N |
| Axial static load | 166000 N |
| Fatigue load limit radial Pu | 9650 N |
| Fatigue load limit axial Pu | 16600 N |
| Min load factor A | 2.2 |
| Speed in grease | 1600 rpm |
| Speed in oil | 2200 rpm |
| C1 | 14mm |
| C2 | 10mm |
| d | 50mm |
| D1 | 70mm |
| r1r2 min | 0.6mm |
| da | 65.6mm |
| ra max | 0.6mm |
| rb max | 0.3mm |
| di | 45mm |
| F | 50mm |
| B1 | 25mm |
| Inner ring | IR45x50x25 |
| Weight | 270 g |
