SKU: NKXR50Z-MB

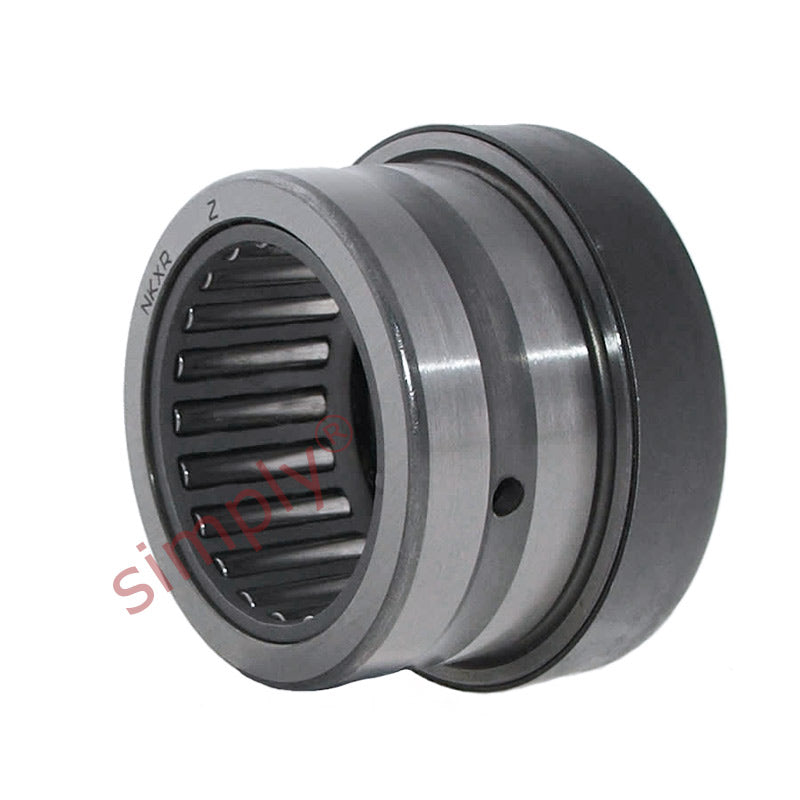

Major Brand NKXR50Z Needle Roller Thrust Bearing without Cover 50x62x35mm
Major Brand NKXR50Z Needle Roller Thrust Bearing without Cover 50x62x35mm
Regular price
€253,95
ex VAT
Regular price
Sale price
€253,95
ex VAT
In stock
Price Break
10+
€192,94
19+
€182,10
29+
€179,93
39+
€177,77
49+
€175,60
74+
€173,43
99+
€162,59
199+
€160,42
249+
€158,25
499+
€156,09
999+
€151,75
Description
Description
|
Needle Roller / Ball Roller Thrust Combination: Of a none separable design, the outer ring with integral housing washer and integral needle roller cage assembly. Benefits: High thrust loading, easily mounted |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 62mm
- Width:
- 35mm
Technical
Technical
| Fw | 50mm |
|---|---|
| D | 62mm |
| C | 35mm |
| Dynamic load | 38000 N |
| Static load | 80000 N |
| Axial dynamic load | 47500 N |
| Axial static load | 166000 N |
| Fatigue load limit radial Pu | 9650 N |
| Fatigue load limit axial Pu | 16600 N |
| Min load factor A | 2.2 |
| Speed in grease | 1600 rpm |
| Speed in oil | 2200 rpm |
| C1 | 14mm |
| C2 | 10mm |
| d | 50 |
