SKU: NNF5015ADB-2LSV-SKF

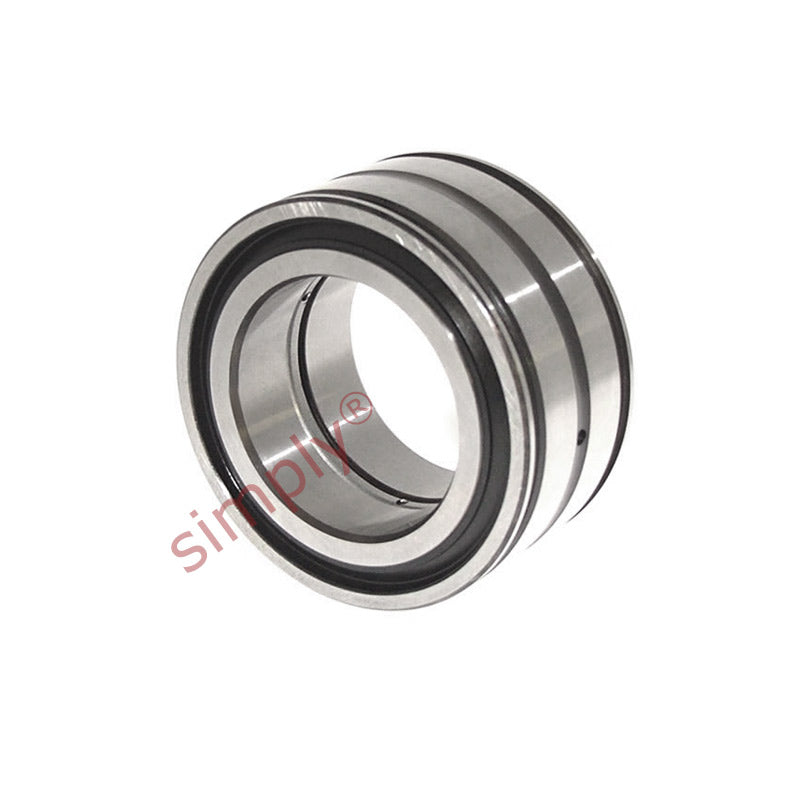

SKF NNF5015ADB2LSV Sealed Double Row Full Complement Cylindrical Roller Bearing 75x115x54mm

Name: SKF NNF5015ADB2LSV Sealed Double Row Full Complement Cylindrical Roller Bearing 75x115x54mm
Brand: SKF
SKU: NNF5015ADB-2LSV-SKF
Price: 441.95 EUR
Availability: InStock

€441,95 ex VAT

Sale Sold out

In stock

Price Break

10+ €336,25

19+ €317,36

29+ €313,58

39+ €309,80

49+ €306,03

74+ €302,25

99+ €283,36

199+ €279,58

249+ €275,80

499+ €272,02

999+ €264,47

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF NNF - LSV Series Double Row Full Complement Cylindrical Roller Bearings: The outer ring has a central flange and a two piece inner ring which has two flanges on each half, each half is held together by a retaining ring which also retains the outer ring, each bearing is supplied assembled with two rubber seals. The outer race is 1mm narrower than the inner and is supplied with two snap rings grooves for alternative mounting arrangements with sleeves etc.
Benefits: Snap ring groove location, sealed and greased, tilting moment tolerant

Brand / Quality:: SKF - High Quality
Inside Diameter:: 75mm
Outside Diameter:: 115mm
Width:: 54mm
Seals / Shields:: Rubber Sealed
Clearance:: * Standard

Technical

d	75mm
D	115mm
B	54mm
C	53mm
Dynamic load C	216 kN
Static load Co	355 kN
Fatigue load limit Pu	44 kN
Limiting speed	1100 rpm
Weight	2 kg
d1	91mm
D1	112mm
E	106mm
C1+0.2	48.2mm
C2	2.4mm
b	4.2mm
b1	5mm
K	3.5mm
r min	1mm
r3r4 min	0.6mm
da min	80mm
das	88.5mm
Da max	110mm
Ca1 - 0.2	43mm
Ca2 - 0.2	40mm
ra max	0.6mm
rb max	0.6mm
Snap ring	SW115
Din 471	115x4
