SKU: NNF5016ADA-2LSV-SKF

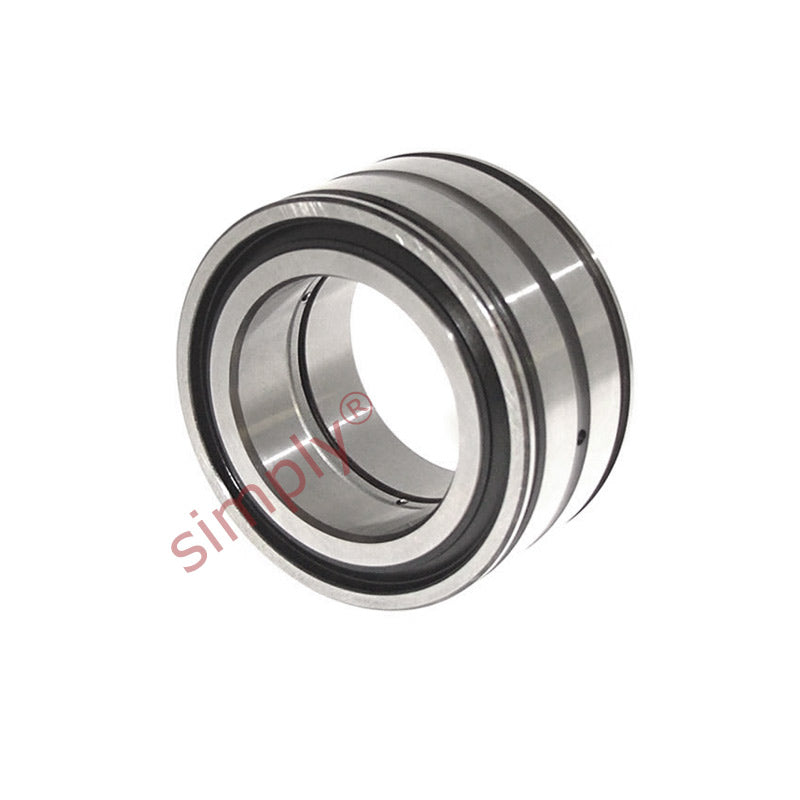

SKF NNF5016ADA2LSV Sealed Double Row Full Complement Cylindrical Roller Bearing 80x125x60mm

Name: SKF NNF5016ADA2LSV Sealed Double Row Full Complement Cylindrical Roller Bearing 80x125x60mm
Brand: SKF
SKU: NNF5016ADA-2LSV-SKF
Price: 425.95 EUR
Availability: InStock

€425,95 ex VAT

Sale Sold out

In stock

Price Break

10+ €323,77

19+ €305,58

29+ €301,94

39+ €298,30

49+ €294,67

74+ €291,03

99+ €272,84

199+ €269,20

249+ €265,56

499+ €261,93

999+ €254,65

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF NNF - LSV Series Double Row Full Complement Cylindrical Roller Bearings: The outer ring has a central flange and a two piece inner ring which has two flanges on each half, each half is held together by a retaining ring which also retains the outer ring, each bearing is supplied assembled with two rubber seals. The outer race is 1mm narrower than the inner and is supplied with two snap rings grooves for alternative mounting arrangements with sleeves etc.
Benefits: Snap ring groove location, sealed and greased, tilting moment tolerant

Brand / Quality:: SKF - High Quality
Inside Diameter:: 80mm
Outside Diameter:: 125mm
Width:: 60mm
Seals / Shields:: Rubber Sealed
Clearance:: * Standard

Technical

d	80mm
D	125mm
B	60mm
C	59mm
Dynamic load C	251 kN
Static load Co	415 kN
Fatigue load limit Pu	53 kN
Limiting speed	1000 rpm
Weight	2.7 kg
d1	97mm
D1	122mm
E	113.5mm
C1+0.2	54.2mm
C2	2.4mm
b	4.2mm
b1	5mm
K	3.5mm
r min	1.5mm
r3r4 min	0.6mm
da min	86mm
das	94.3mm
Da max	120mm
Ca1 - 0.2	49mm
Ca2 - 0.2	46mm
ra max	1.5mm
rb max	0.6mm
Snap ring	SW125
Din 471	125x4
