SKU: NP1.15/16DEC-RHP

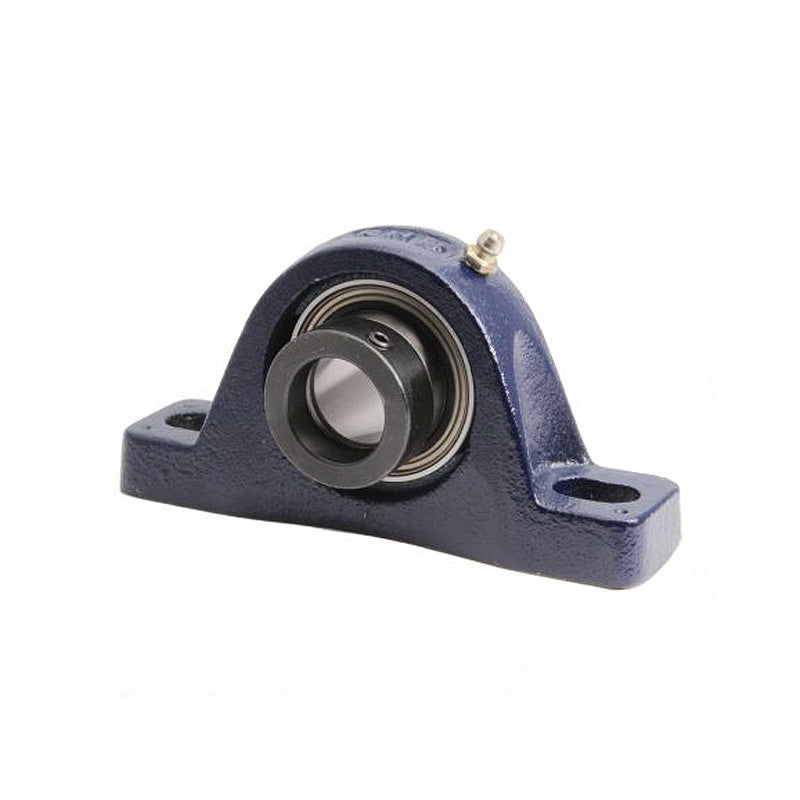

RHP NP1-15/16DEC Two Bolt Cast Iron Pillow Block and 1-15/16 Bore Eccentric Collar Full Width Insert
RHP NP1-15/16DEC Two Bolt Cast Iron Pillow Block and 1-15/16 Bore Eccentric Collar Full Width Insert
Regular price
€120,45
ex VAT
Regular price
Sale price
€120,45
ex VAT
In stock
Price Break
10+
€107,20
19+
€101,18
29+
€99,97
39+
€98,77
49+
€97,56
74+
€96,36
99+
€90,34
199+
€89,13
249+
€87,93
499+
€86,72
999+
€84,32
Couldn't load pickup availability
Description
Description
|
RHP NP-DEC Series Plummer / Pillow Housings: Supplied with a full width sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft once fitted. The insert can be removed from the housings for future replacement as required. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 49.21mm = 1.937 (1-15/16) inch
- Style:
- NP
- Bolt Hole Centres:
- 6.063-6.417 inch
Technical
Technical
| Bore | 1-15/16 inch |
|---|---|
| L | 8.11 inch |
| H | 2.252 inch |
| H1 | 0.827 inch |
| H2 | 4.535 inch |
| J max | 6.417 inch |
| J min | 6.063 inch |
| G | 0.625 inch |
| A | 2.165 inch |
| A1 | 1.417 inch |
| B3 | 2.469 inch |
| s2 | 0.97 inch |
| d2 | 2.75 inch |
| Dynamic load Cr | 35000 N |
| Static load Cor | 23200 N |
| Rec max speed | 3400 rpm |
| Weight | 3.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1050-1-15/16DECG+insonly">1050-1-15/16DECG Click Here</a> |
| Casting group | 8 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
