SKU: NTA613-B125VUS-KOYO

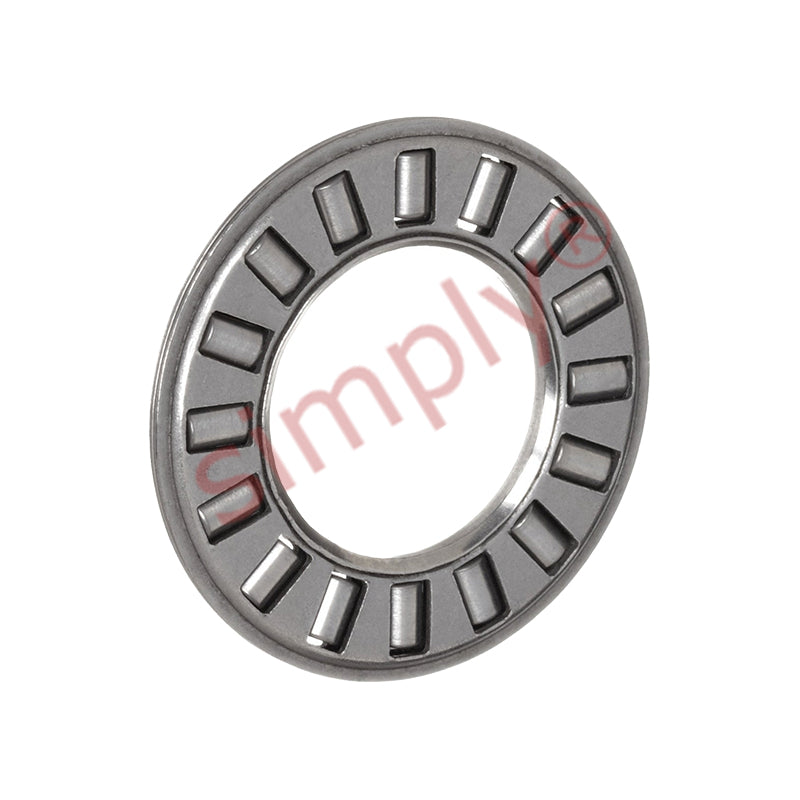

Koyo NTA613 Needle Roller Cage Only 0.38x0.797x0.07 inch
Koyo NTA613 Needle Roller Cage Only 0.38x0.797x0.07 inch
Regular price
€6,95
ex VAT
Regular price
Sale price
€6,95
ex VAT
In stock
Price Break
10+
€5,12
19+
€4,83
29+
€4,77
39+
€4,72
49+
€4,66
74+
€4,60
99+
€4,31
199+
€4,26
249+
€4,20
499+
€4,14
999+
€4,03
Description
Description
|
NTA Imperial Series Needle Roller Thrust Bearings: Needle roller cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the TR series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing. |
- Brand / Quality:
- Koyo - High Quality
- Inside Diameter:
- 9.53mm = 0.375 (3/8) inch
- Outside Diameter:
- 20.24mm = 0.797 (51/64) inch
- Width:
- 1.98mm = 0.078 (5/64) inch
Technical
Technical
| d | 0.375 inch |
|---|---|
| D | 0.8125 inch |
| Eb | 0.0781 inch |
| Dw | 0.66 inch |
| dw | 0.45 inch |
| Dynamic load | 60.5 kN |
| Static load | 14.32 kN |
| Limiting speed | 22000 rpm |
| Weight | 0.001816 kg |
