SKU: NTB.90120

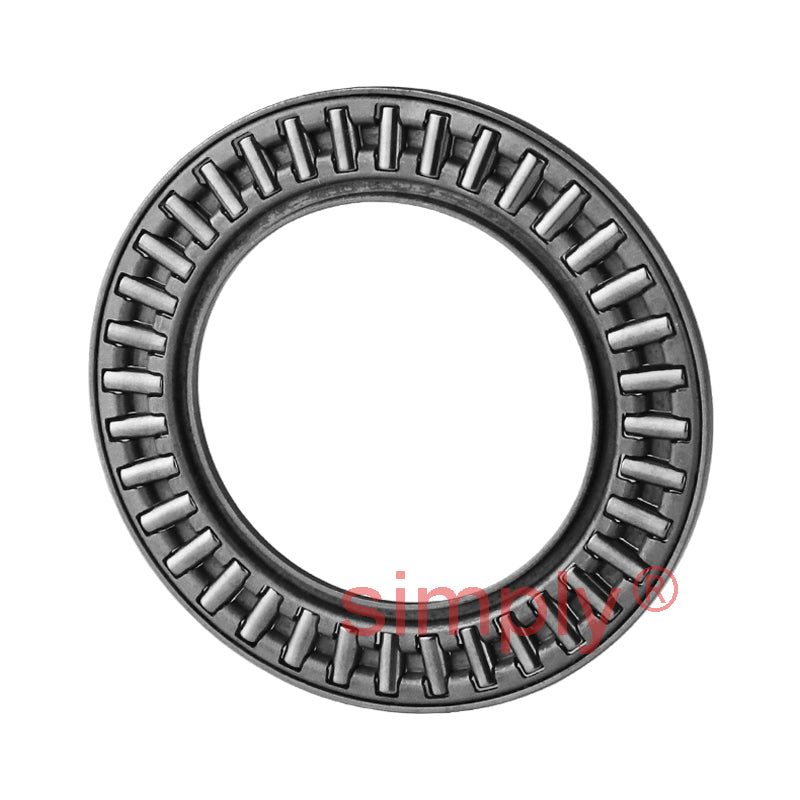

NTB90120 Needle Roller Thrust Bearing Cage Only 90x120x4mm
NTB90120 Needle Roller Thrust Bearing Cage Only 90x120x4mm
Regular price
€9,95
ex VAT
Regular price
Sale price
€9,95
ex VAT
Equivalent to: AXK90120 FNTA90120
In stock
Price Break
10+
€6,90
20+
€6,51
30+
€6,43
40+
€6,36
50+
€6,28
75+
€6,20
100+
€5,81
200+
€5,74
250+
€5,66
500+
€5,58
1000+
€5,43
Description
Description
|
NTB Series Needle Roller Thrust Bearings: Consisting of precisely made cages and needle rollers, these bearings have high rigidity and high load capacities. When bearing mounting surfaces of a machine are heat-treated and finished by grinding as raceways, thrust bearings can be used without raceway rings allowing the machine to be made more compact. Suitable in applications where there is a requirement for high accuracy at high speeds and under varying heavy loads, such as driving mechanisms for automobiles, machine tools and high-pressure pumps. Benefits: Cost effective, can be used in small spaces, high load bearing. |
Equivalent: AXK90120 FNTA90120
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 120mm
- Width:
- 4mm
Technical
Technical
| D | 120mm |
|---|---|
| Dw | 4mm |
| d | 90mm |
| Dynamic Load Cor | 64500 N |
| Static Load Cr | 394000 N |
| Weight | 0.092 kg |
