SKU: NU322ECM/C3VL0241-SKF

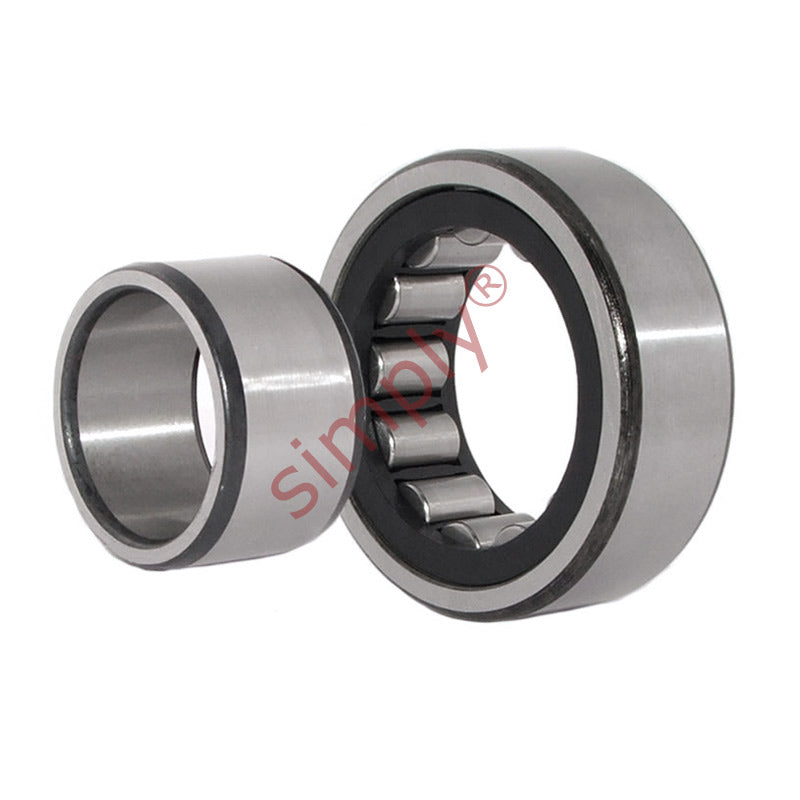

SKF NU322ECMC3VL0241 Insocoat Cylindrical Roller Bearing 110x240x50mm
SKF NU322ECMC3VL0241 Insocoat Cylindrical Roller Bearing 110x240x50mm
Regular price
€2.203,95
ex VAT
Regular price
Sale price
€2.203,95
ex VAT
In stock
Price Break
10+
€1.678,51
19+
€1.584,21
29+
€1.565,35
39+
€1.546,49
49+
€1.527,63
74+
€1.508,77
99+
€1.414,47
199+
€1.395,61
249+
€1.376,75
499+
€1.357,89
999+
€1.320,17
Share this product
Description
Description
|
SKF Insocoat Bearings: Special application bearings that are electrically insulated and capable of withstanding voltages up to 1000v, a layer of aluminium oxide (100µm thickness) Benefits: Electrically insulated |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 240mm
- Width:
- 50mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 110mm |
|---|---|
| D | 240mm |
| B | 50mm |
| Dynamic load C | 530 kN |
| Static load Co | 540 kN |
| Fatigue load limit Pu | 61 kN |
| Reference speed | 3000 rpm |
| Limiting speed | 3400 rpm |
| Weight | 12 kg |
| D1 | 201mm |
| F | 143mm |
| r1r2 min | 3mm |
| r1r4 min | 3mm |
| s | 3mm |
| da min | 124mm |
| da max | 139mm |
| db min | 146mm |
| Da min | 207mm |
| Da max | 226mm |
| ra max | 2.5mm |
| rb max | 2.5mm |
| kr | 0.15 |
