SKU: NW-01-27P

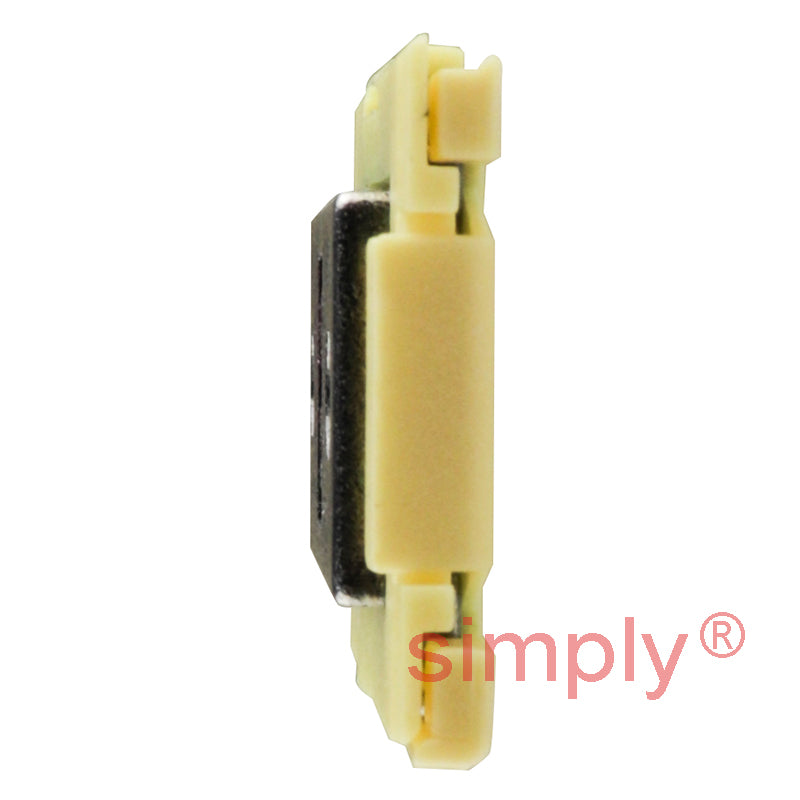

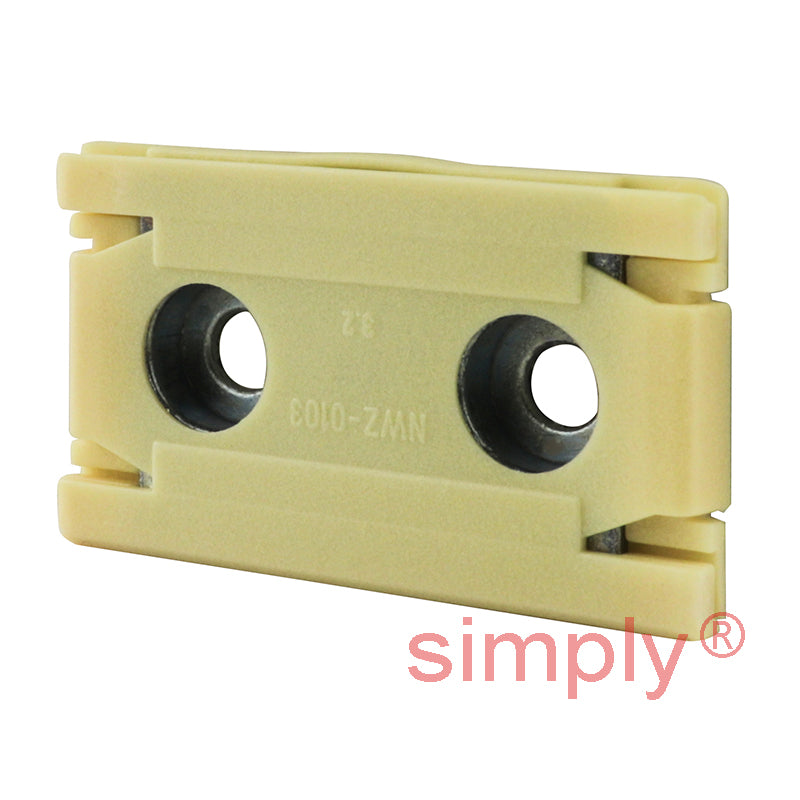

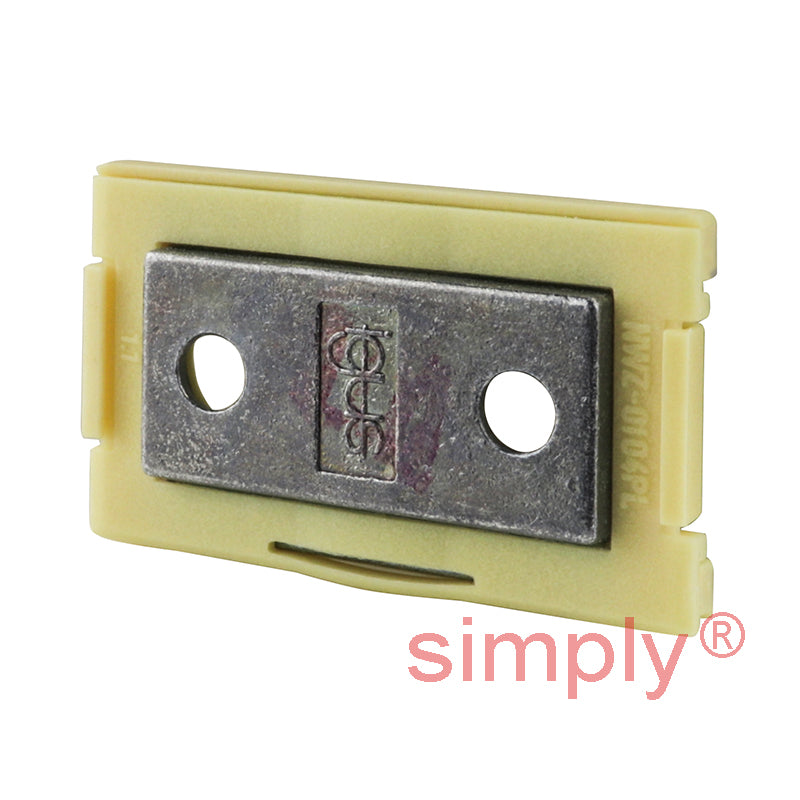

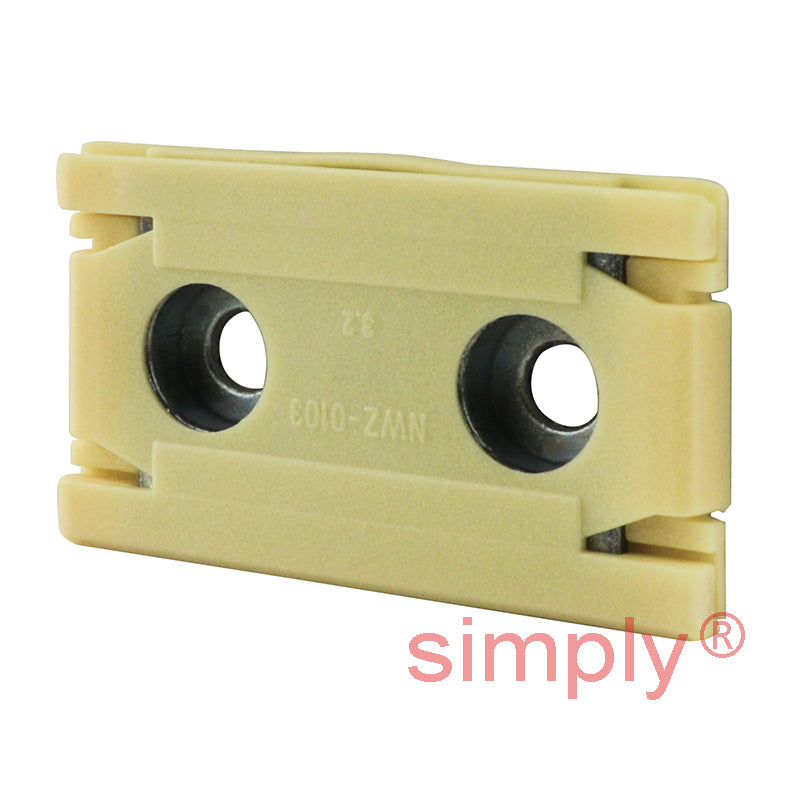

Igus drylin N NW-01-27-P Guide Carriage Installation Size 27 iglidur J Sliding Element
Igus drylin N NW-01-27-P Guide Carriage Installation Size 27 iglidur J Sliding Element
Regular price
€7,95
ex VAT
Regular price
Sale price
€7,95
ex VAT
In stock
Price Break
10+
€5,58
19+
€5,26
29+
€5,20
39+
€5,14
49+
€5,08
74+
€5,01
99+
€4,70
199+
€4,64
249+
€4,57
499+
€4,51
999+
€4,39
Description
Description
Igus drylin N Guide Carriage: The purpose of these drylin N carriages is to compensate for potential misalignment or parallelism errors. There are guides for each size of corresponding rail and the moulded or over moulded section of the carriage can be different materials depending on the application.
Benefits: Cost effective and easy to assemble.
- Brand / Quality:
- Igus - High Quality
Technical
Technical

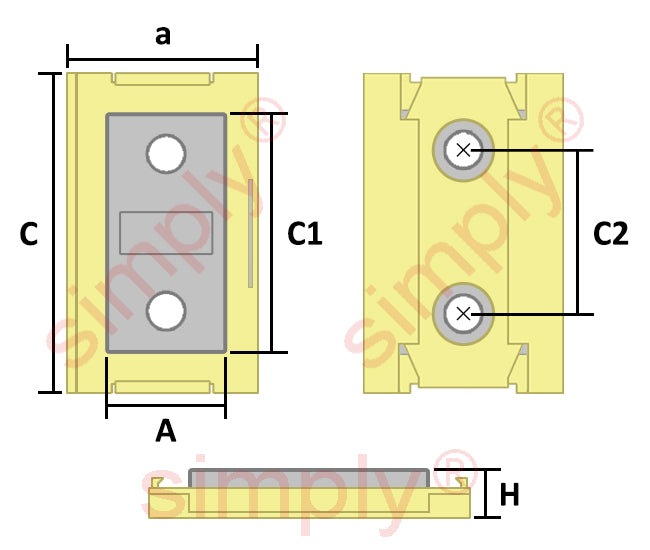

| a | 24mm |
|---|---|
| C | 40mm |
| H | 5mm |
| A | 14mm |
| C1 | 30mm |
| C2 | 20mm |
| Material sliding element | iglidur® J |
| Design | Clip-on plastic |
| Floating bearing | Y-Direction |
| Mounting type | Through holes |
| High temperature | No |
| Camber | None |
| Installation size | 27 |
| Static load capacity | 500 N |
