SKU: P20TF-SKF

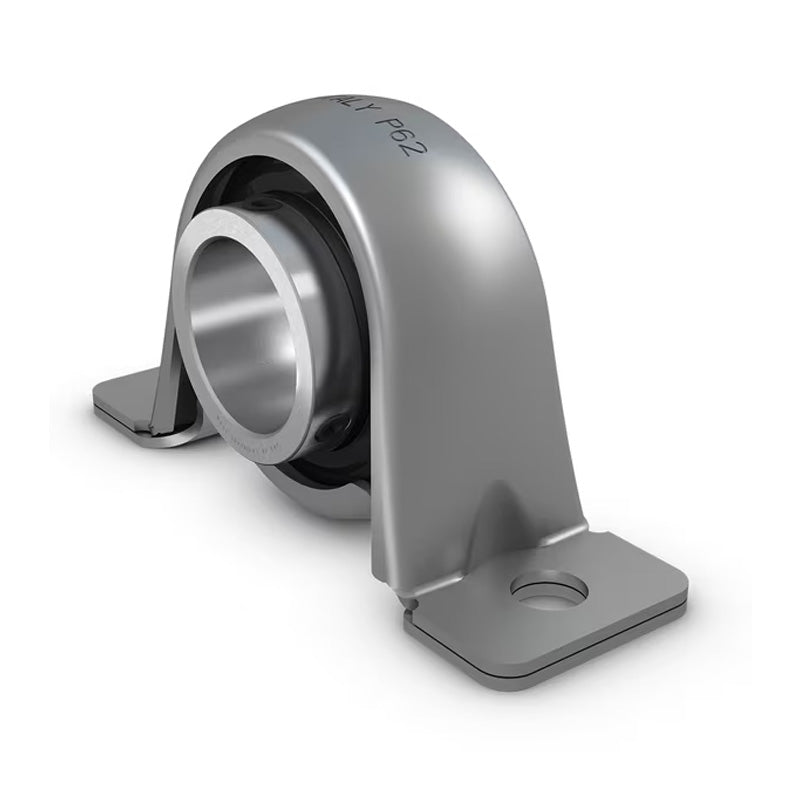

SKF P20TF Pressed Steel Plummer Block with Grub Screw Insert 20mm Bore - Allow 2-3 Days
SKF P20TF Pressed Steel Plummer Block with Grub Screw Insert 20mm Bore - Allow 2-3 Days
Regular price
€582,95
ex VAT
Regular price
Sale price
€582,95
ex VAT
In stock
Price Break
10+
€493,52
20+
€473,58
30+
€463,61
40+
€448,65
50+
€438,68
75+
€413,76
100+
€348,95
200+
€0,00
250+
€0,00
500+
€0,00
1000+
€0,00
Description
Description
| SKF Y-bearing Plummer Block Units with a Pressed Steel Housing: These units are designed for simple applications with limited loads and speeds. The two-part housing, which has no provision for re-lubrication, is ordered separately from the insert bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Style:
- P
- Bolt Hole Centres:
- 76mm
Technical
Technical
| d | 20mm |
|---|---|
| A | 32mm |
| A1 | 21mm |
| B | 31mm |
| H | 50mm |
| H1 | 25.2mm |
| H2 | 3mm |
| J | 76mm |
| L | 99mm |
| N | 9.6mm |
| G | 8mm |
| s1 | 18.3mm |
| Static load Cr | 6.55 kN |
| Dynamic load Cor | 12.7 kN |
| Fatigue load limit Pu | 0.28 kN |
| Permissible housing load radial | 1.7 kN |
| Weight | 0.22 kg |
| Housing | YAR204-2F |
| Insert | P47 |
