SKU: PB17-XL-INA

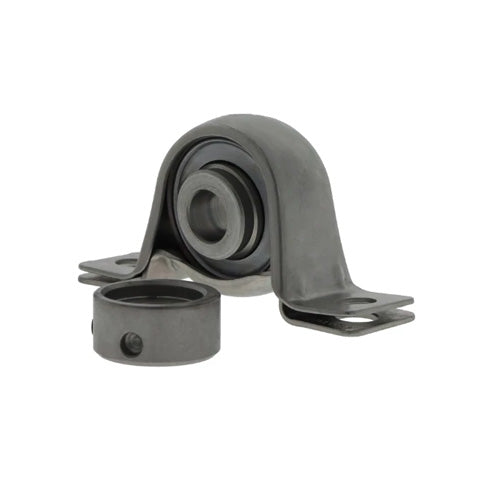

INA PB17XL Sheet Steel Plummer Block Housing with Eccentric Collar Insert 17mm Bore
INA PB17XL Sheet Steel Plummer Block Housing with Eccentric Collar Insert 17mm Bore
Regular price
€27,95
ex VAT
Regular price
Sale price
€27,95
ex VAT
In stock
Price Break
4+
€20,93
9+
€19,76
19+
€19,52
29+
€19,29
39+
€19,05
49+
€18,82
59+
€17,64
69+
€17,40
79+
€17,17
89+
€16,93
99+
€16,46
Description
Description
|
INA Plummer Block Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This sheet steel housing is a two-piece unit with a moderate load carrying capacity and is Corrotect® coated which offers good protection against corrosion. This plummer block housing has a long base and is screw mounted to the adjacent construction by means of slots. The housings are screw mounted on the adjacent construction. Benefits: Suitable for a lightweight construction, housing has Corrotect® coating, eccentric collar. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 17mm
- Style:
- PB
- Bolt Hole Centres:
- 68mm
Technical
Technical
| d | 17mm |
|---|---|
| L | 85.7mm |
| H2 | 43.2mm |
| A | 25.4mm |
| A1 | 18.4mm |
| B1 | 28.6mmd3 max |
| 28.4mm | H |
| 22.2mm | H1 |
| 2.6mm | J |
| 68mm | N |
| 9.5mm | S1 |
| 22.1mm | Mass |
| 0.17 kg | Load carrying capacity of housing Cor G |
| 1350 N | Basic dynamic load rating Cr |
| 10100 N | Basic static load rating Cor |
| 4750 N | Designation of housing |
| GEH40-BT? | Designation of bearing |
| RAE17-XL-NPP-B? | N/A |
