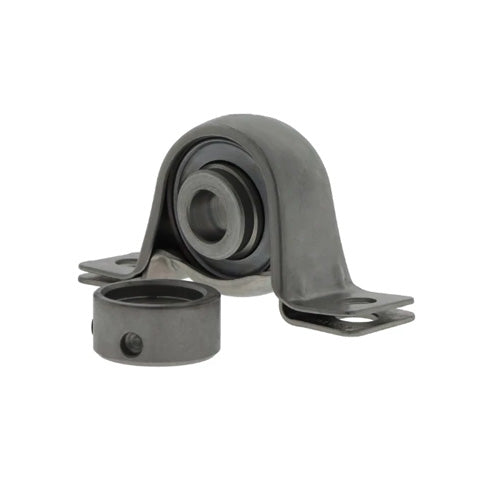

INA PBY25XL Sheet Steel Plummer Block Housing with Grub Screw Insert 25mm Bore
INA PBY25XL Sheet Steel Plummer Block Housing with Grub Screw Insert 25mm Bore
Regular price
€31,95
ex VAT
Regular price
Sale price
€31,95
ex VAT
In stock
Price Break
4+
€24,20
9+
€22,84
19+
€22,57
29+
€22,30
39+
€22,02
49+
€21,75
59+
€20,39
69+
€20,12
79+
€19,85
89+
€19,58
99+
€19,03
Description
Description
|
INA Plummer Block Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with grub screws in the inner ring. This sheet steel housing is a two-piece unit with a moderate load carrying capacity and is Corrotect® coated which offers good protection against corrosion. This plummer block housing has a long base and is screw mounted to the adjacent construction by means of slots. The housings are screw mounted on the adjacent construction. Benefits: Suitable for a lightweight construction, housing is corrosion-resistant, grub screw fixing. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25mm
- Style:
- PBY
- Bolt Hole Centres:
- 86mm

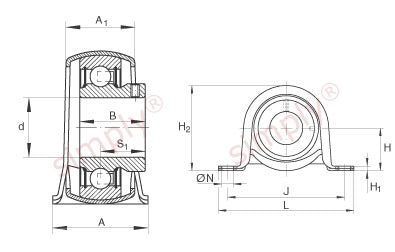

Technical
Technical
| d | 25mm |
|---|---|
| L | 108mm |
| H2 | 56.5mm |
| A | 31.8mm |
| A1 | 23.5mm |
| B | 27mm |
| H | 28.6mm |
| H1 | 4mm |
| J | 86mm |
| N | 11.5mm |
| S1 | 19.5mm |
| Mass | 0.26 kg |
| Load carrying capacity of housing Cor G | 1800 N |
| Basic dynamic load rating Cr | 14900 N |
| Basic static load rating Cor | 7800 N |
| Designation of housing | GEH52-BT? |
| Designation of bearing | AY25-XL-NPP-B? |
