SKU: PHS10EC

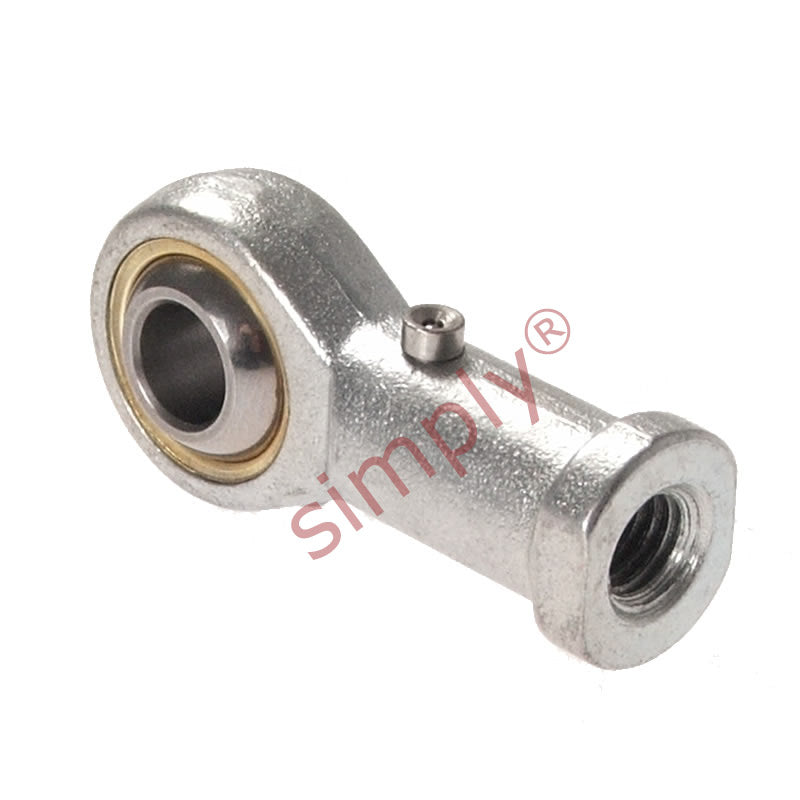

Budget PHS10 Right Hand Steel / PTFE Lined Plain Female Rod End 10mm Bore M10x1.5 Thread

Name: Budget PHS10 Right Hand Steel / PTFE Lined Plain Female Rod End 10mm Bore M10x1.5 Thread
Brand: Gen
SKU: PHS10EC
Price: 50.95 EUR
Availability: InStock

€50,95 ex VAT

Sale Sold out

Equivalent to: GIKFR10PB SIKAC10M SF10 FB-M10

In stock

Price Break

10+ €38,43

19+ €36,27

29+ €35,84

39+ €35,41

49+ €34,98

74+ €34,54

99+ €32,39

199+ €31,95

249+ €31,52

499+ €31,09

999+ €30,23

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Female Rod End with Phosphor Bronze Race: Right hand thread female rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze.

Equivalent: GIKFR10PB SIKAC10M SF10 FB-M10

Brand / Quality:: EU Budget - Economy Quality
Thread Size:: M10x1.5
Thread M / F:: Female
Thread Direction:: Right Hand
Inside Diameter:: 10mm
Material:: Bronze Lined

Technical

d	10mm
B	14mm
r1	0.6mm
C1	10.5mm
d1 max	12.9mm
d2	26mm
d3	M10x1.5
h1	43mm
L3	21mm
L4	56mm
L5	6.5mm
d4	15mm
d5	19mm
S	17mm
Ball diameter	3/4 inch
Dynamic load Cr	10 kN
Static load Cor	13.6 kN
Max angle α	13
Weight	0.072 kg
