SKU: PHS12EC.EU

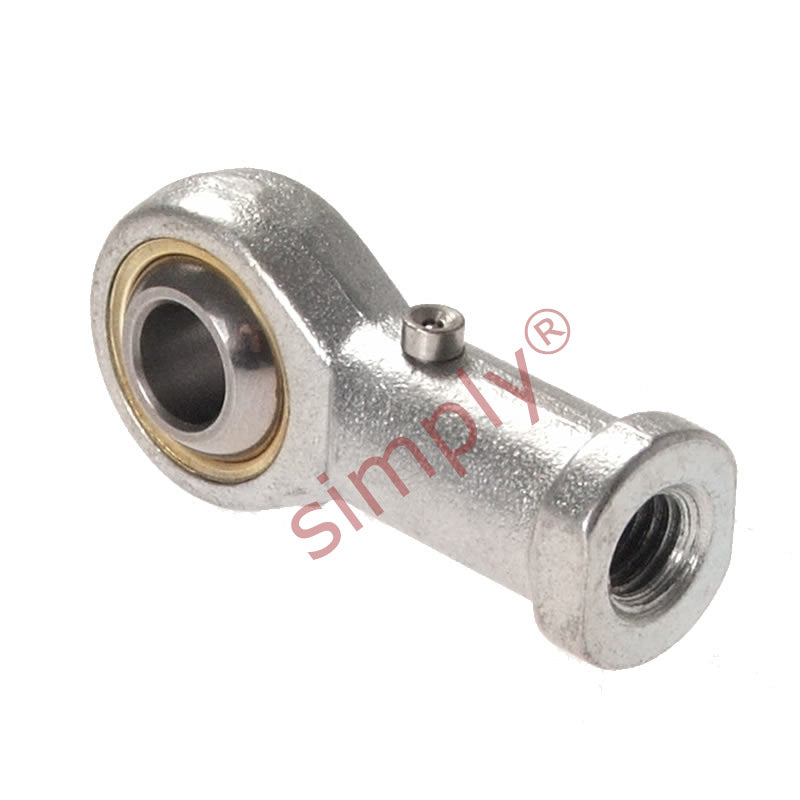

Budget PHS12 Right Hand Steel / PTFE Lined Plain Female Rod End 12mm Bore M12x1.75 Thread

Name: Budget PHS12 Right Hand Steel / PTFE Lined Plain Female Rod End 12mm Bore M12x1.75 Thread
Brand: Gen
SKU: PHS12EC.EU
Price: 10.95 EUR
Availability: InStock

€10,95 ex VAT

Sale Sold out

In stock

Price Break

10+ €7,65

19+ €7,22

29+ €7,13

39+ €7,04

49+ €6,96

74+ €6,87

99+ €6,44

199+ €6,36

249+ €6,27

499+ €6,18

999+ €6,01

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Female Rod End with Phosphor Bronze Race: Right hand thread female rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze.

Brand / Quality:: EU Budget - Economy Quality
Thread Size:: M12x1.75
Thread M / F:: Female
Thread Direction:: Right Hand
Inside Diameter:: 12mm
Material:: Bronze Lined

Technical

d	12mm
B	16mm
r1	0.6mm
C1	12mm
d1 max	15.4mm
d2	30mm
d3	M12x1.75
h1	50mm
L3	23mm
L4	65mm
L5	6.5mm
d4	17.5mm
d5	22mm
S	19mm
Ball diameter	7/8 inch
Dynamic load Cr	13.5 kN
Static load Cor	22.7 kN
Max angle α	13
Weight	0.107 kg
