SKU: PHS14/F1L.EU

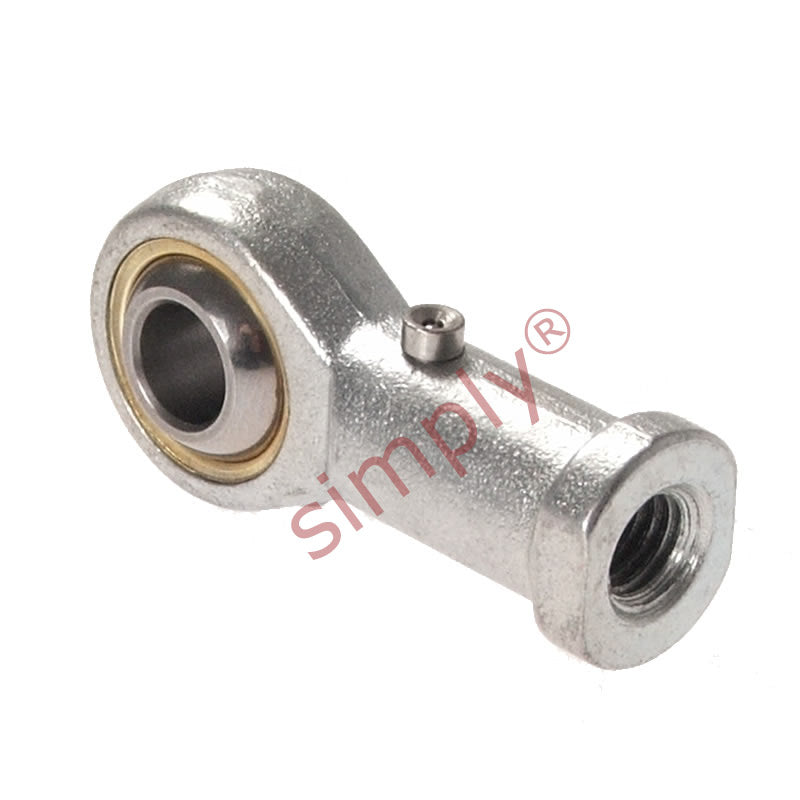

Budget PHS14/F1L Left Hand Steel / Bronze Lined Plain Female Rod End 14mm Bore M14x1.5 Thread - Allow 2-3 Days

Name: Budget PHS14/F1L Left Hand Steel / Bronze Lined Plain Female Rod End 14mm Bore M14x1.5 Thread - Allow 2-3 Days
Brand: Gen
SKU: PHS14/F1L.EU
Price: 9.95 EUR
Availability: InStock

€9,95 ex VAT

Sale Sold out

In stock

Price Break

10+ €7,66

19+ €7,35

29+ €7,20

39+ €6,97

49+ €6,81

74+ €6,42

99+ €5,42

199+ €0,00

249+ €0,00

499+ €0,00

999+ €0,00

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Female Rod End with Phosphor Bronze Race: LEFT hand thread female rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze.

Brand / Quality:: EU Budget - Economy Quality
Thread Size:: M14x1.5
Thread M / F:: Female
Thread Direction:: Left Hand
Inside Diameter:: 14mm
Material:: Bronze Lined

Technical

d	14mm
B	19mm
r1	0.6mm
C1	13.5mm
d1 max	16.8mm
d2	34mm
d3	M14x1.5
h1	57mm
L3	27mm
L4	74mm
L5	8mm
d4	20mm
d5	25mm
S	22mm
Ball diameter	1 inch
Dynamic load Cr	17.1 kN
Static load Cor	21.3 kN
Max angle α	16
Weight	0.16 kg
