SKU: PHS20.EU

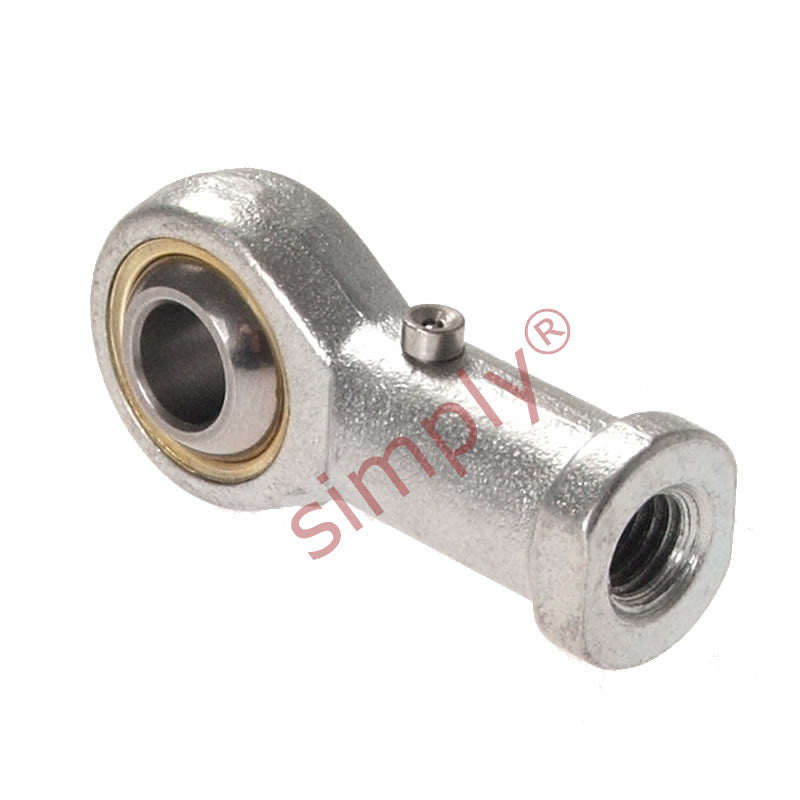

Budget PHS20 Right Hand Steel / Bronze Lined Plain Female Rod End 20mm Bore M20x1.5 Thread

Name: Budget PHS20 Right Hand Steel / Bronze Lined Plain Female Rod End 20mm Bore M20x1.5 Thread
Brand: Gen
SKU: PHS20.EU
Price: 12.95 EUR
Availability: InStock

€12,95 ex VAT

Sale Sold out

Equivalent to: GIKFR20PB SIKAC20M SF20 FB-M20

In stock

Price Break

10+ €9,79

19+ €9,24

29+ €9,13

39+ €9,02

49+ €8,91

74+ €8,80

99+ €8,25

199+ €8,14

249+ €8,03

499+ €7,92

999+ €7,70

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Female Rod End with Phosphor Bronze Race: Right hand thread female rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze.

Equivalent: GIKFR20PB SIKAC20M SF20 FB-M20

Brand / Quality:: EU Budget - Economy Quality
Thread Size:: M20x1.5
Thread M / F:: Female
Thread Direction:: Right Hand
Inside Diameter:: 20mm
Material:: Bronze Lined

Technical

d	20mm
B	25mm
r1	0.6mm
C1	18mm
d1 max	24.3mm
d2	46mm
d3	M20x1.5
h1	77mm
L3	40mm
L4	100mm
L5	10mm
d4	27.5mm
d5	34mm
S	30mm
Ball diameter	1-3/8 inch
Dynamic load Cr	31.4 kN
Static load Cor	36.2 kN
Max angle α	14
Weight	0.38 kg
