SKU: PHS30.EU

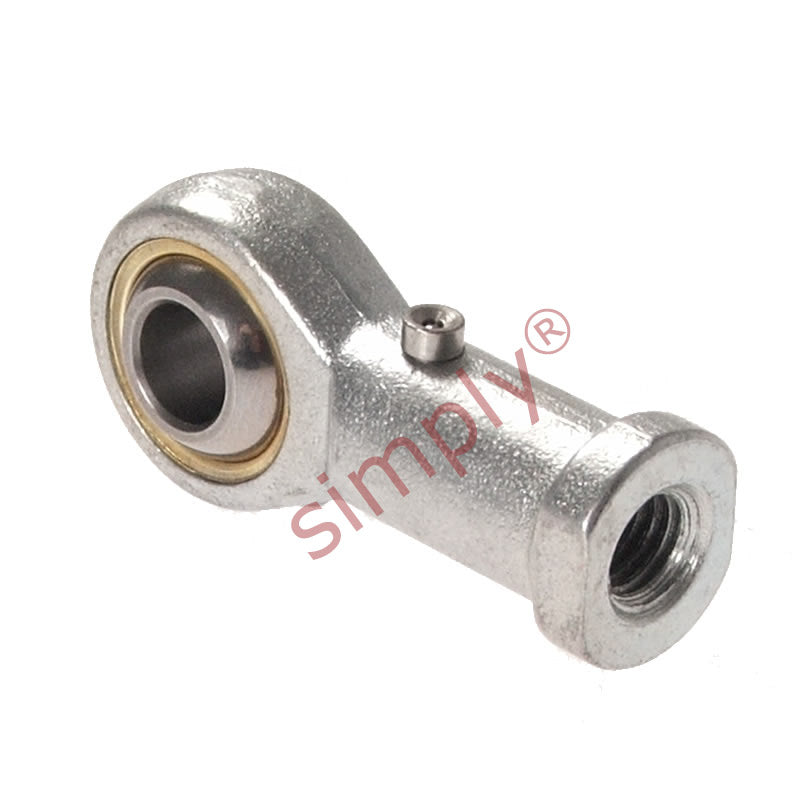

Budget PHS30 Right Hand Steel / Bronze Lined Plain Female Rod End 30mm Bore M30x2 Thread

Name: Budget PHS30 Right Hand Steel / Bronze Lined Plain Female Rod End 30mm Bore M30x2 Thread
Brand: Gen
SKU: PHS30.EU
Price: 36.95 EUR
Availability: InStock

€36,95 ex VAT

Sale Sold out

Equivalent to: GIKFR30PB SIKAC30M SF30 FB-M30

In stock

Price Break

10+ €28,03

19+ €26,45

29+ €26,14

39+ €25,82

49+ €25,51

74+ €25,19

99+ €23,62

199+ €23,30

249+ €22,99

499+ €22,67

999+ €22,04

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Female Rod End with Phosphor Bronze Race: Right hand thread female rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze.

Equivalent: GIKFR30PB SIKAC30M SF30 FB-M30

Brand / Quality:: EU Budget - Economy Quality
Thread Size:: M30x2
Thread M / F:: Female
Thread Direction:: Right Hand
Inside Diameter:: 30mm
Material:: Bronze Lined

Technical

d	30mm
B	37mm
r1	0.6mm
C1	25mm
d1 max	34.8mm
d2	70mm
d3	M30x2
h1	110mm
L3	56mm
L4	145mm
L5	15mm
d4	40mm
d5	50mm
S	41mm
Ball diameter	2 inch
Dynamic load Cr	63.5 kN
Static load Cor	94 kN
Max angle α	17
Weight	1.13 kg
