SKU: PNA12/28-EU

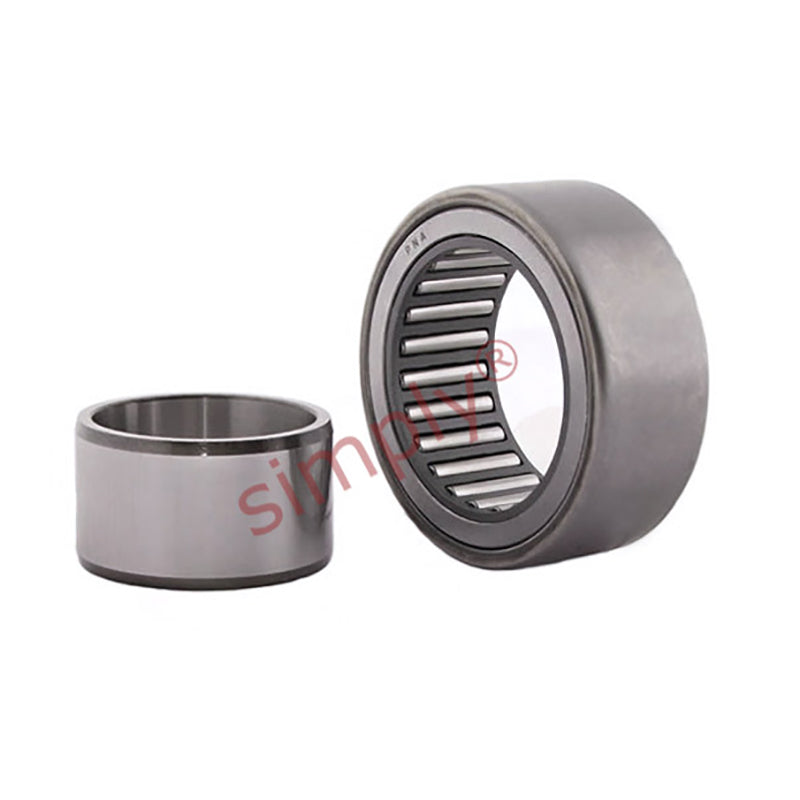

PNA12/28 Budget Needle Roller Bearing Alignment Type With Shaft Sleeve 12x28x12
PNA12/28 Budget Needle Roller Bearing Alignment Type With Shaft Sleeve 12x28x12
Regular price
€21,95
ex VAT
Regular price
Sale price
€21,95
ex VAT
In stock
Price Break
10+
€16,22
19+
€15,31
29+
€15,13
39+
€14,95
49+
€14,76
74+
€14,58
99+
€13,67
199+
€13,49
249+
€13,30
499+
€13,12
999+
€12,76
Description
Description
|
Budget Alignment Needle Roller with Inner Ring: Alignment type needle roller bearings have a convex outside surface which is located in a plastic seating ring with a concaved inner face to match that of the bearing which is located in a drawn sheet steel outer ring allowing for some degree of self alignment. Benefits: Supplied with the inner ring, tolerates misalignment |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 28mm
- Width:
- 12mm
Technical
Technical
| d | 12mm |
|---|---|
| D | 28mm |
| B | 12mm |
| Dynamic load C | 7370 N |
| Static load Co | 9150 N |
| Fatigue load limit Pu | 1080 N |
| Speed in grease | 16000 rpm |
| Speed in oil | 24000 rpm |
| F | 15mm |
| D1 | 24.5mm |
| r min | 1mm |
| r1r2 min | 0.3mm |
| s (axial disp) | 0.5mm |
| da min | 14mm |
| Da min | 23.5mm |
| Da max | 24.5mm |
| ra max | 1mm |
| rb max | 0.3mm |
| Weight | 37 g |
