SKU: PNA17/35-EU

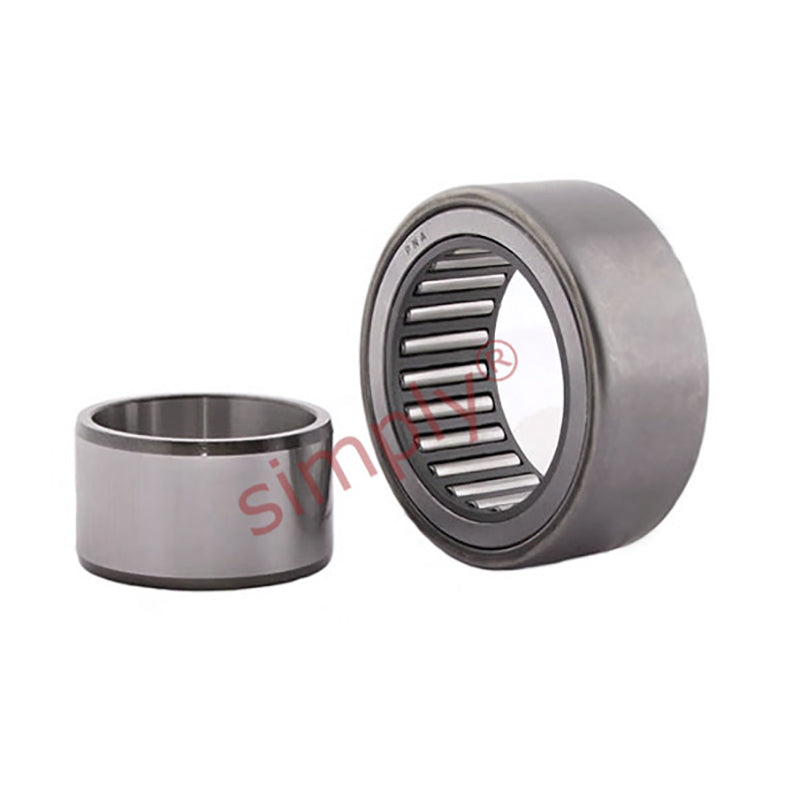

PNA17/35 Budget Needle Roller Bearing Alignment Type With Shaft Sleeve 17x35x16
PNA17/35 Budget Needle Roller Bearing Alignment Type With Shaft Sleeve 17x35x16
Regular price
€25,95
ex VAT
Regular price
Sale price
€25,95
ex VAT
In stock
Price Break
10+
€19,52
19+
€18,42
29+
€18,20
39+
€17,98
49+
€17,76
74+
€17,55
99+
€16,45
199+
€16,23
249+
€16,01
499+
€15,79
999+
€15,35
Description
Description
|
Budget Alignment Needle Roller with Inner Ring: Alignment type needle roller bearings have a convex outside surface which is located in a plastic seating ring with a concaved inner face to match that of the bearing which is located in a drawn sheet steel outer ring allowing for some degree of self alignment. Benefits: Supplied with the inner ring, tolerates misalignment |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 35mm
- Width:
- 16mm
Technical
Technical
| d | 17mm |
|---|---|
| D | 35mm |
| B | 16mm |
| Dynamic load C | 13200 N |
| Static load Co | 19300 N |
| Fatigue load limit Pu | 2280 N |
| Speed in grease | 13000 rpm |
| Speed in oil | 19000 rpm |
| F | 20mm |
| D1 | 30.5mm |
| r min | 1mm |
| r1r2 min | 0.3mm |
| s (axial disp) | 0.5mm |
| da min | 19mm |
| Da min | 29.5mm |
| Da max | 30.5mm |
| ra max | 1mm |
| rb max | 0.3mm |
| Weight | 73 g |
