SKU: PNA20/42-EU

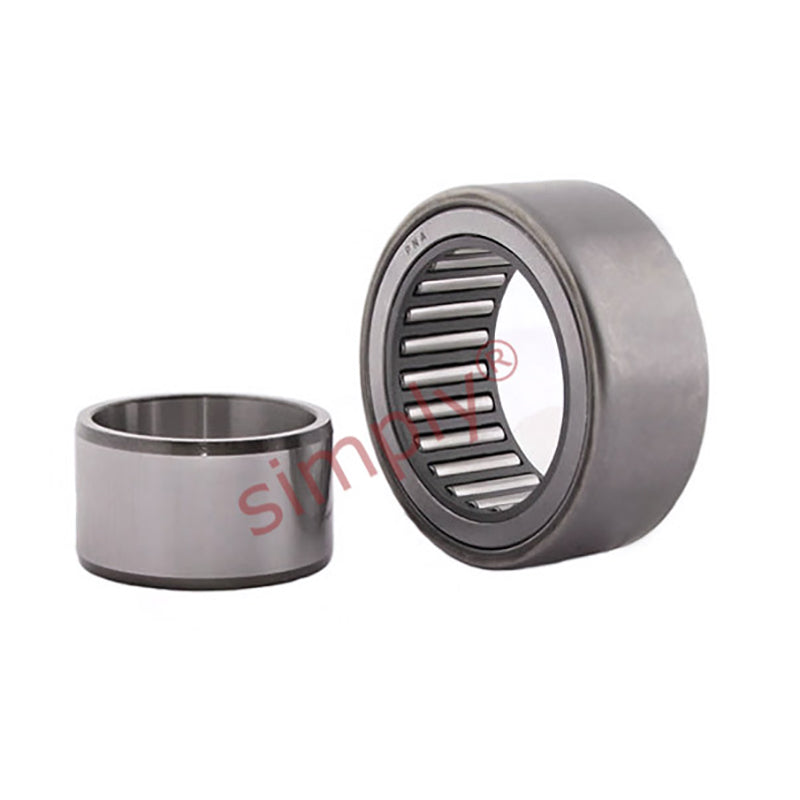

PNA20/42 Budget Needle Roller Bearing Alignment Type With Shaft Sleeve 20x42x20
PNA20/42 Budget Needle Roller Bearing Alignment Type With Shaft Sleeve 20x42x20
Regular price
€28,95
ex VAT
Regular price
Sale price
€28,95
ex VAT
In stock
Price Break
10+
€21,83
19+
€20,61
29+
€20,36
39+
€20,11
49+
€19,87
74+
€19,62
99+
€18,40
199+
€18,15
249+
€17,91
499+
€17,66
999+
€17,17
Description
Description
|
Budget Alignment Needle Roller with Inner Ring: Alignment type needle roller bearings have a convex outside surface which is located in a plastic seating ring with a concaved inner face to match that of the bearing which is located in a drawn sheet steel outer ring allowing for some degree of self alignment. Benefits: Supplied with the inner ring, tolerates misalignment |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 42mm
- Width:
- 20mm
Technical
Technical
| d | 20mm |
|---|---|
| D | 42mm |
| B | 20mm |
| Dynamic load C | 19000 N |
| Static load Co | 32500 N |
| Fatigue load limit Pu | 4000 N |
| Speed in grease | 10000 rpm |
| Speed in oil | 16000 rpm |
| F | 25mm |
| D1 | 36.5mm |
| r min | 1mm |
| r1r2 min | 0.3mm |
| s (axial disp) | 0.5mm |
| da min | 22mm |
| Da min | 35mm |
| Da max | 37mm |
| ra max | 1mm |
| rb max | 0.3mm |
| Weight | 140 g |
