SKU: PNA30/52-EU

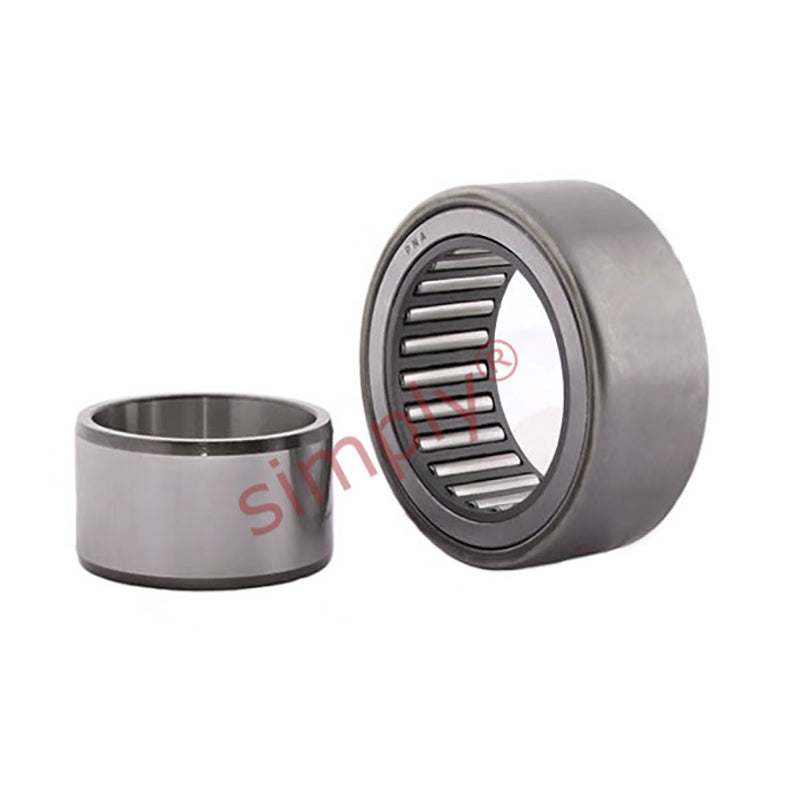

PNA30/52 Budget Needle Roller Bearing Alignment Type With Shaft Sleeve 30x52x20
PNA30/52 Budget Needle Roller Bearing Alignment Type With Shaft Sleeve 30x52x20
Regular price
€34,95
ex VAT
Regular price
Sale price
€34,95
ex VAT
In stock
Price Break
10+
€25,95
19+
€24,49
29+
€24,20
39+
€23,91
49+
€23,62
74+
€23,33
99+
€21,87
199+
€21,58
249+
€21,29
499+
€20,99
999+
€20,41
Description
Description
|
Budget Alignment Needle Roller with Inner Ring: Alignment type needle roller bearings have a convex outside surface which is located in a plastic seating ring with a concaved inner face to match that of the bearing which is located in a drawn sheet steel outer ring allowing for some degree of self alignment. Benefits: Supplied with the inner ring, tolerates misalignment |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 52mm
- Width:
- 20mm
Technical
Technical
| d | 30mm |
|---|---|
| D | 52mm |
| B | 20mm |
| Dynamic load C | 24600 N |
| Static load Co | 45000 N |
| Fatigue load limit Pu | 5600 N |
| Speed in grease | 7500 rpm |
| Speed in oil | 11000 rpm |
| F | 35mm |
| D1 | 47.5mm |
| r min | 1mm |
| r1r2 min | 0.3mm |
| s (axial disp) | 0.5mm |
| da min | 32mm |
| Da min | 46.5mm |
| Da max | 47.5mm |
| ra max | 1mm |
| rb max | 0.3mm |
| Weight | 180 g |
