SKU: PNA30/52-MB

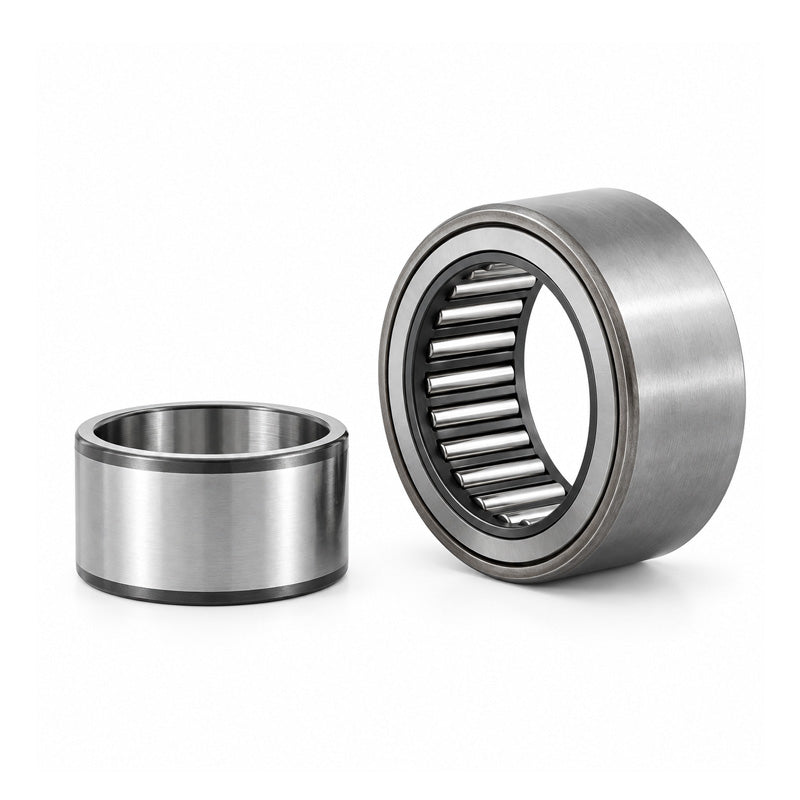

Major Brand PNA30/52 Needle Roller Bearing Alignment Type With Shaft Sleeve 30x52x20
Major Brand PNA30/52 Needle Roller Bearing Alignment Type With Shaft Sleeve 30x52x20
Regular price
€56,95
ex VAT
Regular price
Sale price
€56,95
ex VAT
In stock
Price Break
10+
€43,25
19+
€40,82
29+
€40,34
39+
€39,85
49+
€39,36
74+
€38,88
99+
€36,45
199+
€35,96
249+
€35,48
499+
€34,99
999+
€34,02
Description
Description
|
Alignment Needle Roller with Inner Ring: Alignment type needle roller bearings have a convex outside surface which is located in a plastic seating ring with a concaved inner face to match that of the bearing which is located in a drawn sheet steel outer ring allowing for some degree of self alignment. Benefits: Supplied with the inner ring, tolerates misalignment |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 52mm
- Width:
- 20mm
Technical
Technical
| d | 30mm |
|---|---|
| D | 52mm |
| B | 20mm |
| Dynamic load | 24600 N |
| Static load | 45000 N |
| Fatigue load limit Pu | 5600 N |
| Speed in grease | 7500 rpm |
| Speed in oil | 11000 rpm |
| F | 35mm |
| D1 | 47.5mm |
| r min | 1mm |
| r1r2 min | 0.3mm |
| s (axial disp) | 0.5mm |
| da min | 32mm |
| Da min | 46.5 |
