SKU: PNA40/62-EU

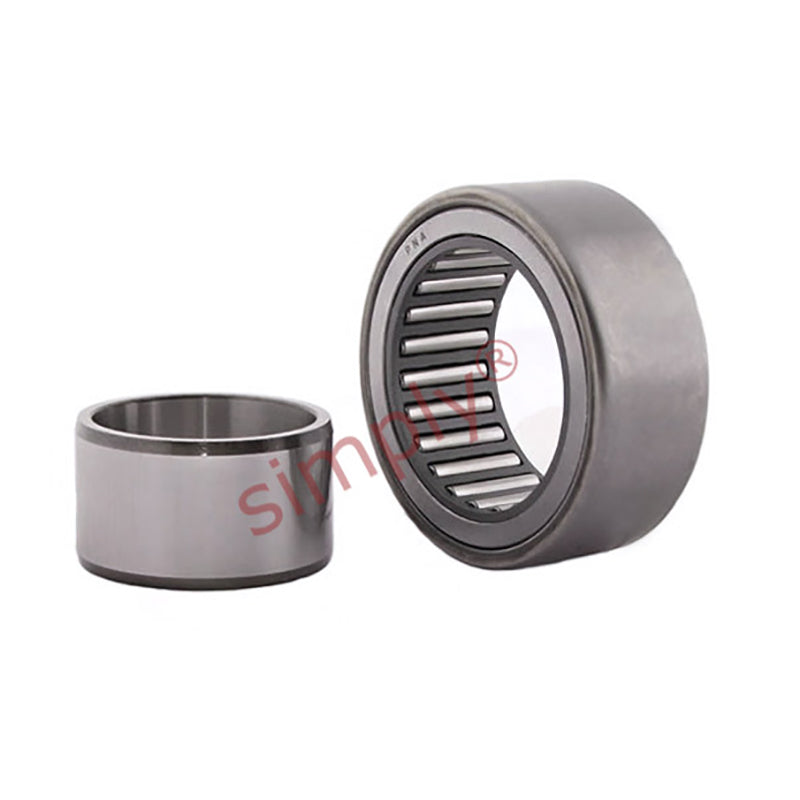

PNA40/62 Budget Needle Roller Bearing Alignment Type With Shaft Sleeve 40x62x20
PNA40/62 Budget Needle Roller Bearing Alignment Type With Shaft Sleeve 40x62x20
Regular price
€42,95
ex VAT
Regular price
Sale price
€42,95
ex VAT
In stock
Price Break
10+
€32,44
19+
€30,62
29+
€30,25
39+
€29,89
49+
€29,52
74+
€29,16
99+
€27,34
199+
€26,97
249+
€26,61
499+
€26,24
999+
€25,51
Description
Description
|
Budget Alignment Needle Roller with Inner Ring: Alignment type needle roller bearings have a convex outside surface which is located in a plastic seating ring with a concaved inner face to match that of the bearing which is located in a drawn sheet steel outer ring allowing for some degree of self alignment. Benefits: Supplied with the inner ring, tolerates misalignment |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 62mm
- Width:
- 20mm
Technical
Technical
| d | 40mm |
|---|---|
| D | 62mm |
| B | 20mm |
| Dynamic load C | 27500 N |
| Static load Co | 57000 N |
| Fatigue load limit Pu | 7100 N |
| Speed in grease | 6300 rpm |
| Speed in oil | 9000 rpm |
| F | 45mm |
| D1 | 58mm |
| r min | 1mm |
| r1r2 min | 0.3mm |
| s (axial disp) | 0.5mm |
| da min | 42mm |
| Da min | 57mm |
| Da max | 58mm |
| ra max | 1mm |
| rb max | 0.3mm |
| Weight | 230 g |
