SKU: POS10.MB.FLURO

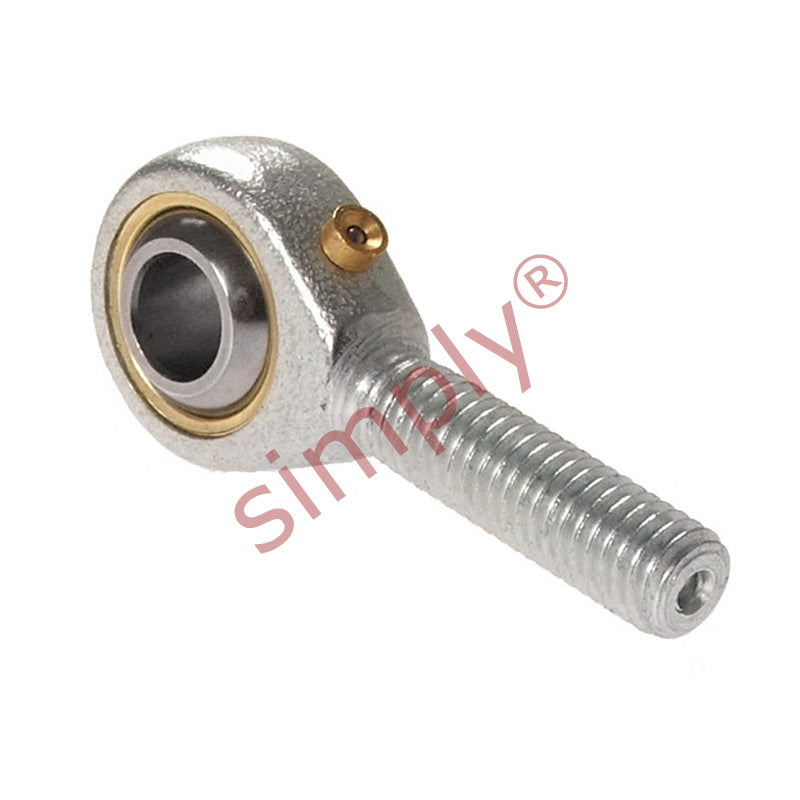

Fluro POS10 Right Hand Steel / Bronze Lined Plain Male Rod End 10mm Bore M10 Thread
Fluro POS10 Right Hand Steel / Bronze Lined Plain Male Rod End 10mm Bore M10 Thread
Regular price
€25,95
ex VAT
Regular price
Sale price
€25,95
ex VAT
In stock
Price Break
10+
€19,73
19+
€18,62
29+
€18,40
39+
€18,18
49+
€17,96
74+
€17,74
99+
€16,63
199+
€16,41
249+
€16,18
499+
€15,96
999+
€15,52
Description
Description
|
Male Rod End with Phosphor Bronze Race: Right hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M10
- Thread Direction:
- Right Hand
- Material:
- Bronze Lined
Technical
Technical
| d | 10mm |
|---|---|
| B | 14mm |
| r1 | 0.6mm |
| C1 | 10.5mm |
| d1 max | 12.9mm |
| d2 | 26mm |
| d3 | M10x1.5 |
| h | 48mm |
| l1 | 29mm |
| l2 | 61mm |
| Ball diameter | 3/4 inch |
| Dynamic load Cr | 10 kN |
| Static load Cor | 13.6 kN |
| Max angle a | 13 |
| Weight | 0.054 kg |
