SKU: POS12.EU

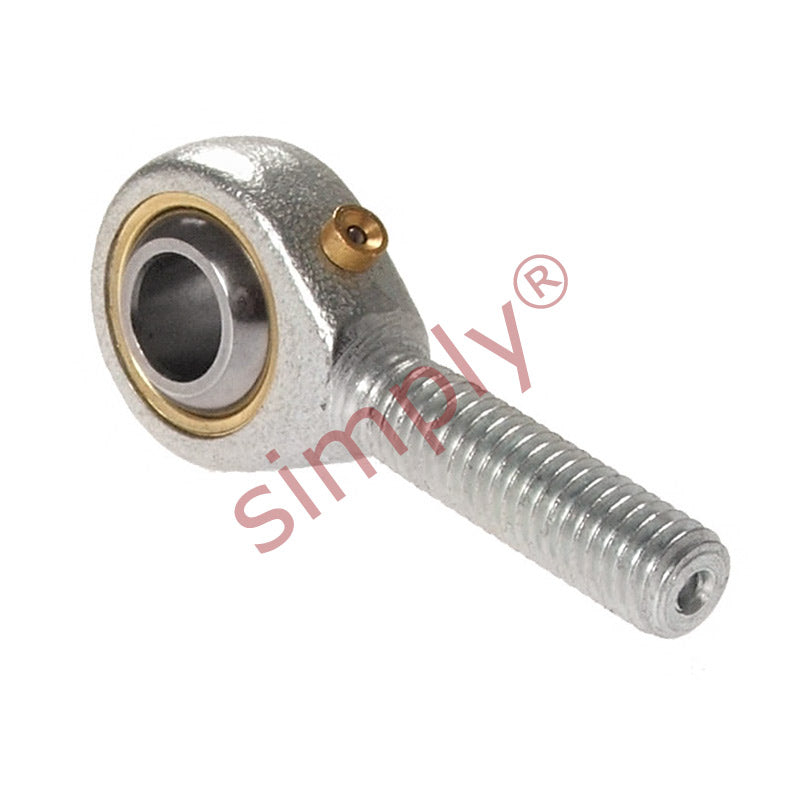

Budget POS12 Right Hand Steel / Bronze Lined Plain Male Rod End 12mm Bore M12x1.75 Thread
Budget POS12 Right Hand Steel / Bronze Lined Plain Male Rod End 12mm Bore M12x1.75 Thread
Regular price
€7,95
ex VAT
Regular price
Sale price
€7,95
ex VAT
Equivalent to: GAKFR12PB SAKAC12M SM12 MB-M12
In stock
Price Break
10+
€5,63
19+
€5,32
29+
€5,25
39+
€5,19
49+
€5,13
74+
€5,06
99+
€4,75
199+
€4,68
249+
€4,62
499+
€4,56
999+
€4,43
Description
Description
|
Male Rod End with Phosphor Bronze Race: Right hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
Equivalent: GAKFR12PB SAKAC12M SM12 MB-M12
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M12x1.75
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 12mm
- Material:
- Bronze Lined
Technical
Technical
| d | 12mm |
|---|---|
| B | 16mm |
| r1 | 0.6mm |
| C1 | 12mm |
| d1 max | 15.4mm |
| d2 | 30mm |
| d3 | M12x1.75 |
| h | 54mm |
| l1 | 33mm |
| l2 | 69mm |
| Ball diameter | 7/8 inch |
| Dynamic load Cr | 13.3 kN |
| Static load Cor | 17.3 kN |
| Max angle α | 13 |
| Weight | 0.085 kg |
