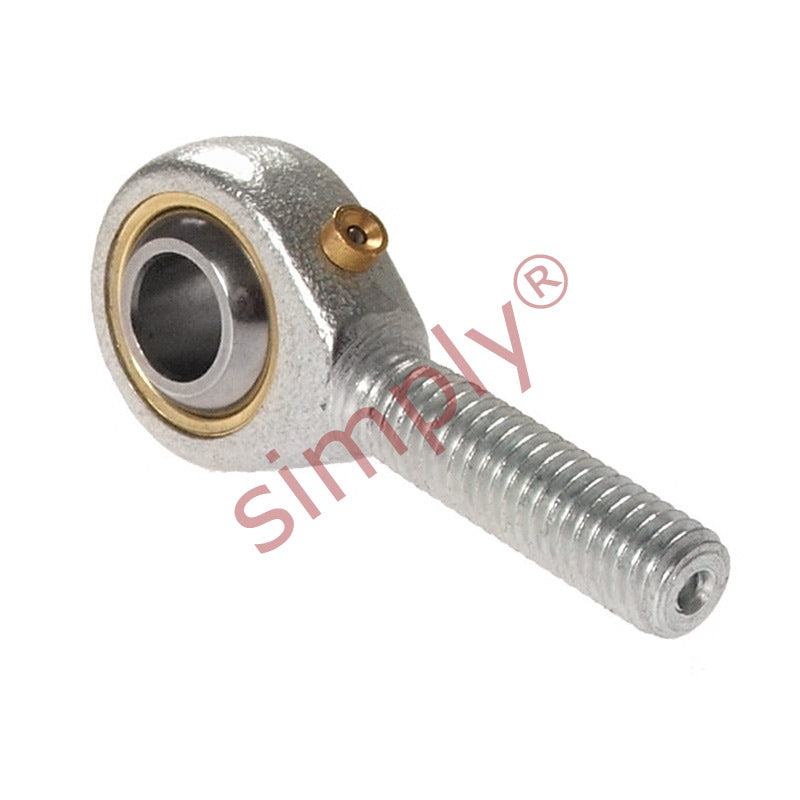

Budget POS16 Right Hand Steel / PTFE Lined Plain Male Rod End 16mm Bore M16x2 Thread
Budget POS16 Right Hand Steel / PTFE Lined Plain Male Rod End 16mm Bore M16x2 Thread
Regular price
€25,95
ex VAT
Regular price
Sale price
€25,95
ex VAT
In stock
Price Break
10+
€19,04
19+
€17,97
29+
€17,76
39+
€17,55
49+
€17,33
74+
€17,12
99+
€16,05
199+
€15,84
249+
€15,62
499+
€15,41
999+
€14,98
Description
Description
|
Male Rod End with Phosphor Bronze Race: Right hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M16x2
- Thread Direction:
- Right Hand
- Material:
- PTFE Lined
Technical
Technical
| d | 16mm |
|---|---|
| B | 21mm |
| r1 | 0.6mm |
| C1 | 15mm |
| d1 max | 19.3mm |
| d2 | 38mm |
| d3 | M16x2 |
| h | 66mm |
| l1 | 40mm |
| l2 | 85mm |
| Ball diameter | 1-1/8 inch |
| Dynamic load Cr | 21.4 kN |
| Static load Cor | 25.9 kN |
| Max angle α | 15 |
| Weight | 0.185 kg |
